High-Quality, Flexible, Remote-Controlled Wireless Video Solution for Your Small Business
Highlights
High-quality remote-controlled wireless video camera
Captures images even in low-light environments (1 lux at f2.0)
Simultaneous dual codecs provide optimal combination of viewing and storage of video
Supports two-way audio, IP multicast, 3GPP (3rd Generation Partnership Project), and more advanced features

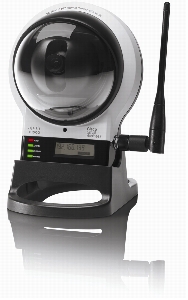

Figure 1. Cisco WVC210 Wireless-G PTZ Internet Video Camera: 2-Way Audio
Product Overview
Cisco Small Business Video Surveillance products provide customizable ways for small business owners to monitor and protect their companies. These high-quality solutions can be optimized for many different applications and sites.
The Cisco WVC210 Wireless-G PTZ Internet Video Camera (Figure 1) sends live video through the Internet to a web browser anywhere in the world. The camera supports dual codecs (MPEG-4 and MJPEG), which can be used simultaneously. MPEG-4 gives efficient bandwidth consumption with good-quality compression and is optimal for real-time viewing of video. MJPEG gives optimal video quality, making it ideal for large-volume storage to a network attached storage (NAS) device.
The Cisco WVC210's audio capabilities include two-way audio, an embedded microphone, external speaker and microphone ports, and voice compression. With extensive support for features such as IP multicast, Real Time Streaming Protocol (RTSP), Real Time Protocol (RTP), and 3rd Generation Partnership Project (3GPP), it enables video to be viewed from multiple endpoints and client applications, such as 3G phones and QuickTime clients on PCs or Wi-Fi phones. Network protocols such as 802.1p priority, 802.1Q VLANs, and Dynamic DNS (DDNS) are also supported.
The pan/tilt and digital zoom functions allow you to remotely control the camera movement and focus, giving you maximum remote flexibility. Up to 10 simultaneous unicast users can access the camera at any time. Video monitoring software is included for monitoring multiple cameras and recording to your hard drive, with advanced search by time and date. Recording can be set up to start by motion trigger or by manual or scheduled recording. Playback is available on Windows Media Player, with no need for a proprietary player.
You can also enable security mode, which tells the camera to send a message with a short attached video to up to three email addresses whenever it detects motion in its field of view. You can then log in to the live video stream if the situation warrants. Wireless security features include Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA), and WPA2.
Features
Pan, tilt, and 2x digital zoom
Complementary metal-oxide semiconductor (CMOS) sensor with glass lens
Dual codecs (MPEG-4 and MJPEG) supported simultaneously
Captures video and two-way audio (with built-in microphone and external speaker) to your hard drive
Built-in web server for remote access over IP
Supports Universal Plug and Play (UPnP) for easy discovery on the network
DDNS support for available free DDNS services
Supports up to 10 simultaneous unicast users
Motion detection with event notification to an email account or alarm log in the monitoring software
LCD screen displays full IP address for easy configuration
Includes software for monitoring, recording, and playback of up to 16 cameras
Captures JPEG snapshots at multiple resolutions; snapshots can be sent to an FTP server
IP multicast - supports unlimited multicast users
Real Time Streaming Protocol (RTSP) video and audio streaming to unicast and multicast clients
3GPP allows viewing of video on a 3G mobile device
Real-Time video recording from the Web interface directly with one button recording
PC-less event recording directly to Network Attached Storage via integrated Samba client
Specifications
Table 1 gives the specifications, package contents, and minimum requirements for the Cisco WVC210 Wireless-G PTZ Internet Video Camera.
Table 1. Specifications for the Cisco WVC210 Wireless-G PTZ Internet Video Camera: 2-Way Audio
|
Specifications
|
|
Standards
|
IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.1p (quality of service [QoS] priority), IEEE 802.1Q (VLAN), IEEE 802.11e (wireless QoS), IEEE 802.11i (security)
|
|
Protocols supported
|
TCP/IP, HTTP, Dynamic Host Configuration Protocol (DHCP), Simple Mail Transfer Protocol (SMTP), FTP, Bonjour, Network Time Protocol (NTP), DNS, Universal Plug and Play (UPnP), RTP, RTSP, and DDNS
|
|
Ports
|
Ethernet, antenna, microphone in, speaker out, power (5V 2A)
|
|
Buttons
|
Reset
|
|
Cabling type
|
Unshielded twisted pair (UTP) Category 5
|
|
LEDs
|
Power, Activity, Ethernet, Wireless-G
|
|
Lens
|
|
Sensor
|
1/4-in. CMOS
|
|
Illumination
|
1 lux at f2.0
|
|
Focal length
|
500 mm~infinity
|
|
Field of view
|
60
|
|
Video resolution
|
640 x 480, 320 x 240, 160 x 120
|
|
Frame rate
|
Up to 30 frames per second
|
|
Camera Control
|
|
Auto patrol
|
9 user-defined preset points
|
|
Pan
|
67
|
|
Tilt
|
-34 (down) to +30 (up)
|
|
Setup, Configuration, and Management
|
|
User interface
|
Built-in web user interface for easy browser-based configuration (HTTP)
|
|
Web browser support
|
Internet Explorer 5.x or later with ActiveX support for viewing, recording, playing back, and setting motion detection; limited support for Safari and Mozilla Firefox (no motion detection)
|
|
Logging
|
Event logging (syslog)
|
|
Upgrades
|
Firmware upgrades available from web browser
|
|
Monitor and record software
|
Monitoring and recording for up to 16 cameras
Monitor live video, record, and play back simultaneously
|
|
Video
|
|
Dual codecs
|
MPEG-4 simple profile, MJPEG
|
|
Snapshot
|
JPEG
|
|
Image position
|
Flip and mirror
|
|
Image settings
|
Brightness and contrast
|
|
Video controls
|
Auto white balance (AWB), auto exposure (AES)
|
|
Image control
|
Select video by quality, bandwidth, and frame rate
|
|
Format
|
3GPP for use with 3G phones
|
|
Modulation
|
National Television System Committee (NTSC) and Phase Alternating Line (PAL)
|
|
Overlay
|
Time stamp and text description
|
|
Audio
|
|
Summary
|
2-way audio with built-in microphone (6 mm, -40 db +3 db)
Microphone input - 3.5-mm phone jack
Speaker output - 3.5-mm phone jack
|
|
Compression
|
G.726 - 16 kbps; G.711 A-law and -law
|
|
Sampling rate
|
8 kHz
|
|
Default bit rate
|
16 kbps
|
|
Included Video Monitoring System Software (SWVMS16)
|
|
Monitoring/recording software
|
Monitoring, recording, and playback for up to 16 cameras
Advanced search histogram or by time and date
Recording set up to record by motion trigger, manual, or schedule
|
|
Alerts
|
|
Motion detection
|
4 detection areas with individual sensitivity thresholds; triggers alerts
|
|
FTP uploading
|
FTP server address and login settings
|
|
Actions
|
Messaging, email (up to 3 email addresses), FTP
|
|
Security
|
|
WEP/WPA
|
WEP 64 bit/128 bit, WPA Temporal Key Integrity Protocol (WPA-TKIP), WPA Pre-Shared Key (WPA-PSK), WPA2-PSK, WPA2-Enterprise
|
|
User list
|
3-level user rights list to view video and to control camera
|
|
Username/password
|
Login authentication with up to 20-character username and 8-character password
|
|
Network
|
|
RTP and RTSP
|
Allow for viewing from any client that supports these protocols, such as 3G phones or QuickTime clients
|
|
NTP
|
Synchronizes camera date and time with your network
|
|
SMTP
|
Allows video clips to be emailed
|
|
FTP client
|
Facilitates scheduling transfer of images to an FTP server
|
|
DDNS
|
Facilitates accessing the camera by name, irrespective of the camera IP address
|
|
UPnP
|
Allows auto-discovery of the camera by other UPnP devices
|
|
Environmental
|
|
Dimensions
W x H x D
|
1.26 x 7.83 x 6.89 in.
(32 x 199 x 175 mm)
|
|
Weight
|
1.01 lb (.46 kg)
|
|
Power
|
5V DC 2.0A switching power supply
|
|
Certification
|
Wi-Fi, FCC, CE, and UL
|
|
Operating temperature
|
-32 to 113F (0 to 45C)
|
|
Storage temperature
|
-4 to 140F (-20 to 70C)
|
|
Operating humidity
|
10% to 80%, noncondensing
|
|
Storage humidity
|
0% to 90%, noncondensing
|
|
Package Contents
|
|
Cisco WVC210 Wireless-G PTZ Internet Video Camera
Wireless-G antenna
Ethernet cable
DC power adapter
Desktop stand
CD including setup wizard, user guide and video monitoring software
|
|
Minimum Requirements (Camera)
|
|
Wired or wireless 802.11b or 802.11g network
Network adapter with Ethernet network cable and TCP/IP installed on each PC
Switch/router to support multiple connection points
Internet Explorer 6.x or later with ActiveX support for viewing, recording, playback, and setting motion detection; limited support for Safari and Mozilla Firefox (no motion detection)
|
|
Minimum Video Monitoring System Requirements (4-Camera Viewing)
|
|
CPU - Intel Pentium 4, 2.4 GHz
RAM - 512 MB
Motherboard - Intel 945 or 965 chip or above; Intel chipset recommended
Video card - ATI Radeon 9200, NVIDIA GeForce FX-5200, or Intel 945G/965G or later; ATI recommended
Ethernet - 100 BASE-T or above; Gigabit LAN recommended
Hard disk - 80 GB or more
Operating system - Microsoft Windows XP Pro Service Pack 2 or Microsoft Vista
|
|
Works With
|
|
Cisco SFE2000P 24-Port 10/100 Ethernet Switch with Power over Ethernet (PoE)
Cisco RVS400 4-Port Gigabit Security Router with VPN
Cisco SRW224G4P 24-Port 10/100 + 4-Port Gigabit Switch with WebView and PoE
Cisco NSS2000 2-Bay Network Storage System
|
|
Product Warranty
|
|
3-year limited hardware warranty with return to factory replacement and a 90-day limited software warranty
|
