Max-IP-Cam
Network camera
Old Code: SW-C-IPC, New Code: SW111-IPC

Swann's Max-IP-Cam differs from the usual web or PC camera because it
is a stand-alone device with a built-in CPU and web server that allows you to
access video and sound from the camera from anywhere in the world.

The Max-IP-Cam is ideal for monitoring the office after hours the children in
the backyard whilst you're on the computer and general security surveillance.

Wireless SecuraVision Camera
Extra Wireless Security Camera
Old Code: SW-G-GAWC, New Code: SW231-SCW

The SecuraVision Extra 2.4 Ghz Wireless Camera is designed to be used with the Wireless SecuraVision Security Monitoring System.

The Swann SecuraVision Monitor has four channels which means you can purchase additional cameras and monitor up to four areas* in your home or office from one central location!

Featuring 2.4 Ghz technology you have the freedom to move the monitor from room to room without complicated wiring or getting a professional electrician in. With crystal clear black & white images and sound you can keep an eye on your valuable home or property by DAY while the built in LEDs (invisible light beams) allows you to monitor at NIGHT.

- Extra wireless camera - for use with the Wireless SecuraVision Monitoring System Kit

Features

• Ideal for home or office use! Built-in infrared LEDS
• Sensitive microphone for clear crisp sound
• Ideal for outdoor and indoor use
• No messy wires - sends images & sound to monitor* through walls ceilings & floors

RECEIVER (MONITOR)
Picture Tube	5' CRT B/W diagonal screen
Video System	NTSC
Receiver Frequency	2.4Ghz
Maximum Range (line of sight)	300 feet
Receiver Antenna	Directional
Receiver Sensitivity	-25 ~ -90 dBm
Maximum Audio Output	600mW
Output at 10% THD	500mW
Horizontal Pull-in	+/- 200 Hz
Horizontal Hold	+/- 400 Hz
Vertical Range	6Hz
Resolution at centre	Vertical 250 lines Horizontal 300 lines
Maximum Luminance	100 cd/m2
Scan display Rate	90% Vertical/Horizontal
Current Consumption	1200mA
Power Supply	DC 13.5V
	TRANSMITTER (CAMERA)
TV System	B/W EIA
Image Sensor	_ ' CMOS
Video System	NTSC
Transmitter Frequency	2.4Ghz
Maximum Range (line of sight)	300 feet
Transmitter Antenna	Directional
Transmit Sensitivity	0 dBm FCC
Number of Effective Pixels	320 x 240
Scanning System	2:1 Interlace
Resolution	240 TV lines (Horizontal)
Auto Exposure	1/60 -1/6000 seconds
Camera Application	Indoor use only
Night Vision Effective Distance	1 metre
Minimum Illumination	2 lux
Microphone Sensitivity	1-2 metres
Auxiliary Input	1 video & 1 audio
Number of channels	4
Current Consumption	300mA
Power Supply	12V DC

BlackKnight High Resolution Wireless Camera
Professional CCD Camera
Old Code: SW-C-BLACKK, New Code: SW233-WBK

The Swann BlackKnight is the color security camera you have been looking for. Within a sleek black finish, it combines day & night vision and a sturdy metal exterior for all-weather monitoring. The BlackKnight is the perfect security protector for your home, business, office or retail premises.
You can have a total of 4 of these cameras working together with one receiver.

Features

• Color 1/4" CCD image sensor for excellent picture quality
• 49ft/15m Infra-red night vision
• Wireless 2.4 GHz tranmission over 150ft/45m
• Weatherproof Casing & Slidable sunshield for outdoor use
• Ideal for home, office or small business sureveilance

NightHawk Extra Camera
Extra Wireless NightHawk with Night Vision
Old Code: SW-P-WOCEX, New Code: SW231-WOX

Create your own security solution:

• Add to a DVR or Quad Processor with no cabling required
• Add an Extra Night Hawk Camera
• Ideal wireless addition to any existing security solution

Place the camera anywhere within reception range:

• In the letterbox or garage
• The eaves around the house
• Monitor the pool yard entrances and driveway
>

Mains power adapter included

Features

• Quality color surveillance suitable for home, office and retail security
• DIY - no cable installation required
• Professional quality images
• 11 Infra-red LEDs for night vision
• Switchable to 4-channels to avoid interference
• 2.4GHz wireless transmission to receiver (sold separately)
• Signal range of 100m/330ft*
• No receiver included

*Note: IP Ratings stated on the front panel are for cameras only

NightHawk - Indoor & Outdoor Wireless Camera
Wireless surveillance with Night Vision
New Code: SW231-WOC,

Create your own security solution:

• Add to a DVR or Quad Processor with no cabling required
• Add an Extra Night Hawk Camera
• Ideal wireless addition to any existing security solution

Place the camera anywhere within reception range:

• In the letterbox or garage
• The eaves around the house
• Monitor the pool yard entrances and driveway

Mains power adapter included

Features

• Quality color surveillance suitable for home, office and retail security
• DIY - no cable installation required
• Professional quality images
• 11 Infra-red LEDs for night vision
• Included receiver is easily connected to a DVR, VCR, TV or PC (With Capture Card)

Sensor	Color " CMOS
Resolution	380 TV Lines
Pixels	628 x 582 (PAL), 510 x 492 (NTSC)
Auto Exposure	1/60 - 1/15000 sec
Backlight Compensation (BCC)	Yes
Wired or Wireless	Wireless
Frequency	2.4GHz
Transmission Range	Up to 330ft (100m)
Cable Length	3ft (1m) - for receiver only
Camera Channels	4 - switchable
Receiver	Included, 4 channels switchable
	Visibility
Visual Distance	Sees up to 330ft (100m)
Lens Focus/Visual Angle	60
	Night Vision
Number of infrared LEDs	11
Range in the dark	Up to 16ft (5m)
	Other Features
Camera Suitability	Indoors & Outdoors
Water Resistant	No
Audio Range	1.6ft (0.5m)
Monitor	Not included
Power Consumption	65mA (105mA IR on)
Camera Operating Power	8V DC
Camera Operating Temperatures	32F to 113F (0C to 45 C)
Stand	Included
Tilt/Adjustable	Yes
Weight (out of pack)	7 oz (197g)

BullDog CCD Camera
Day/Night Camera with LEDs for Night Vision
Old Code: SW-C-BDOGC, New Code: SW224-BDC

The Swann Bulldog Security Camera is a versatile security solution that suits both indoor and outdoor applications. Featuring a robust metal casing, the camera is ideal for almost all areas.
Providing clear color images during the day, the camera automatically switches to black & white mode at night, while the 12 infra-red LEDs project invisible light up to 10m/33ft! Now, you can monitor your premises at night or keep an eye on areas such as stairwells, secluded corners or alleyways that usually have little or no light!

Features

• High resolution 420TVL CCD camera
• Night Vision up to 33ft / 10m
• For indoor or outdoor applications
• Connects easily to a TV, DVR, VCR, Monitor & Quad Processor
• Robust metal casing & professional design

Sensor	Color " CCD Sensor
Resolution	420 TV Lines
Pixels	500 x 582 (PAL), 510 x 492 (NTSC)
Auto Exposure	1/50 - 1/100,000 sec
Backlight Compensation (BCC)
Wired or Wireless	Wired
Frequency	N/A
Transmission Range	Depends on cable length
Cable Length	32ft (10m)
Camera Channels	1
Receiver	N/A
	Visibility
Visual Distance	Sees up to 330ft (100m)
Lens Focus/Visual Angle	50
	Night Vision
Number of infrared LEDs	9
Range in the dark	33ft (10m)
	Other Features
Camera Suitability	Indoors & Outdoors
Water Resistant	Yes
Audio Range	N/A
Monitor	Not included
Power Consumption	120mA (270mA IR on)
Camera Operating Power	12V
Camera Operating Temperatures	32F to 122F (0C to 50 C)
Stand	Included
Tilt/Adjustable	Yes
Weight (out of pack)	15.87 oz (450g)

Sensor	Color " CCD Sensor
Resolution	400 TV Lines
Pixels	512 x 582 (PAL), 512 x 492 (NTSC)
Auto Exposure	1/50 (1/60) - 1/100,000 sec
Backlight Compensation (BCC)	Auto
Wired or Wireless	Wired
Frequency	N/A
Transmission Range	N/A
Cable Length	30ft (10m)
Camera Channels	N/A
Receiver	N/A
	Visibility
Visual Distance	Sees up to 30ft (10m)
Lens Focus/Visual Angle	30
	Night Vision
Number of infrared LEDs	12
Range in the dark	30ft (10m)
	Other Features
Camera Suitability	Indoors
Water Resistant	No
Audio Range	N/A
Monitor	Not included
Power Consumption	150mA
Camera Operating Power	12V DC
Camera Operating Temperatures	-4F to 122F (-20C to 50 C)
Stand	N/A
Tilt/Adjustable	Yes
Weight (out of pack)	3 oz(247g)

HD-420 Security Camera
High Powered, Discreet Surveillance
New Code: SW221-H42,

The Swann HD-420 Security Camera provides you with crystal clear images when connected to your TV, VCR or Swann Security solution. With C/CS inter-changeable lens system the camera allows for the addition of optional lenses.
The Swann HD-420 Security Camera is ideal for domestic to commercial applications, to suit your surveillance and location needs.

Features

• Benefit from the latest camera sensor technology
• Fitted with 3.5-8mm vari-focal zoom lens
• High resolution 420 TV lines
• Latest enhanced video image sensor
• 60ft/16m RCA AV cable
• Perfect for home, business, office, warehouse and more

Camera Sensor	1/3"/8.5mm color super CMOS
TV System	PAL/CCIR (AU, UK, EU) NTSC/EIA (USA)
Effective Element	PAL: 628 x 582 NTSC: 510 x 492
Definition	420 TV Lines
Scan Frequency	PAL/CCIR 50Hz / NTSC 60Hz
Minimum Illumination	3 Lux
Signal Noise Ratio	> 40dB
Electronic Shutter	1/60 ~ 1/15,000 sec
Noise	<0.03% Peak Value
Power Supply	8V ~ 12V DC 300mA
View Angle	40
Power Control	CDS Light Sensor
Power Consumption	1.5 Watts
Window	2mm heat-resisting glass
Construction	Aluminum
Operation Temperature	-4F ~ 140F / -20 C ~ 560C

Sensor	1/4' Sharp CCD (6.35mm)
CCD Total Pixels	510 x 492 (NTSC) 500 x 582 (PAL)
Video Format	NTSC (USA); PAL (AU UK EU)
Horizontal Resolution	420 TV Lines
Minimum Illumination	2 Lux / F1.2
Backlight Compensation	Auto
Electronic Shutter	1/50 (1/60) ~ 1/100000sec
S/N Ratio	>48db
Minimum illumination	[email protected]
White balance	Auto
S/N Ratio	>48dB
Gamma Correction	>0.45
Operation Temperature	32F~122F / 0C~50C
Video Output	1.0Vp-p / 75Ohm
Power Supply	DC12V

Super NightOwl 105
Pro CCD Camera with Infrared Night Vision
Old Code: SW-C-SNO, New Code: SW224-SNO

The Swann Super NightOwl is an extremely powerful night vision camera boasting 105 super infrared LEDs. The camera can be placed on walls, ceilings, or under eaves. This color camera switches to black and white mode at night and is able to see in total darkness. Connect it directly to your TV, VCR, DVR or even your PC for easy viewing and monitoring. Perfect for homes, businesses, retail, shopping malls, airports, casinos, banks etc... Great day and night surveillance you can count on!

Features

• Super Night Vision with 105 bright infra-red LEDs
• Color camera switches to black & white mode at night
• Can see wide vision in total darkness
• Mount to wall/ceilings/under eaves
• Connect to your TV, VCR. DVR. Quad Processor, LCD monitor or PC with Swann PC Security Guardian
• Perfect for homes, businesses, retail, shopping malls, airports, casinos, banks, schools, parking lots, law enforcement, day and night surveillance

MegaFlood
Pro CCD Camera with Infra-Red Night Vision
Old Code: SW-C-MFC, New Code: SW224-MFC

Features

• High resolution 420 TV Lines video display
• Powerful 1/3" Sony CCD color image sensor chip
• Operates in freezing temperatures down to 4F (-20C)
• 44 ultra-bright infra-red LEDs see in the dark up to 160ft
• Easy to install and connects to your existing TV or monitor

UnderwaterCam
Waterproof Color Video Camera
Old Code: SW-L-UWC, New Code: SW214-UWC

Features

• Watch the kids swimming, record snorkeling trips or check out the conditions under the boat
• EXCLUSIVE white LEDS project light underwater for clear color pictures
• Connects to most camcorders*, TVs, VCRs, portable monitors and LCD Screens with AV inputs
• Comes with 20m/66ft of cable and rechargeable battery for up to 4 hours of operating time!
  *With standard A/V plugs

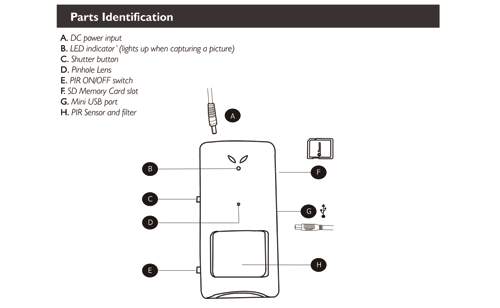

Digital Private Eye
Digital Intruder Picture Camera
New Code: SW211-DPE,

Being a "fly on a wall" no longer requires multiple components or tricky wiring. With the new generation Digital Private Eye video camera and time-lapse recorder with motion trigger from Swann Security you can install greater peace of mind for a fraction of the cost. Whether it's for the office, your home, the baby's nursery, the warehouse, whatever you want to monitor the Digital Private Eye records multiple images for added security and ultimate control. Position the camera at your front door or hallway, then simply plug in your SD Memory Card (sold separately), power cable or 9V battery (included) then watch the camera go to work! You can use up to a 1GB on your SD Memory Card which takes up to 30,000 images.

Features Motion activated covert camera with SD memory Catch suspicious behavior in the act with easy plug & play installation Automatically record images onto SD Memory card (not included) upon motion A new generation time-lapse recorder with motion trigger Can use a rechargeable (recommended) or standard9V battery or mains power

Features

• Broad lens for sharper overall focus
• Camera can be adjusted to allow 360 field of view
• Easily mountable
• Compact and easy to install

Twin Value Pack
2 Camera Color Video Monitoring
Old Code: SW-P-HSK, New Code: SW216-HSK

The Swann Twin Value Pack is the ultimate do-it-yourself video cameras for your home or business. Comes with built-in microphones to hear sounds and quality bonus lens to see even the faintest objects.
Multiple monitoring options choose from 2 TV monitors or a single one. So to keep a closer eye on your property or loved ones this is the value pack for you.

Features

• All-purpose video cameras - for your home or business
• High quality color images
• Built-in microphone
• Simple and easy to use - plugs into any DVR, VCR, Quad Processor, TV or Swann security monitor
• Lightweight & small in size

OutdoorCam Color
Security Camera
Old Code: SW-D-DODC, New Code: SW214-ODC

The Swann OutdoorCam Security Camera is a versatile security solution that suits both indoor and outdoor applications. Featuring a robust weather resistant metal casing the camera is ideal for areas subject to dust rain or other wet conditions.

Providing clear color images the camera features an auto-light sensor that switches on the 11 infra-red LEDs at night projecting invisible light. Now you can monitor your premises at night or keep an eye on areas such as stairwells secluded corners or alleyways that usually have little or no light!

Features

• Robust weatherproof and vandalproof casing
• Clear resolution color CCTV images
• 11 bright infra-red LEDs automatically switch on at night providing invisible light
• Color camera automatically switches to black & white at night
• Connects to your TV, VCR, DVR, Quad Processor or LCD Monitor for viewing or recording
• Easy to install and use!

Sensor	Color " CMOS Sensor
Resolution	380 TV Lines
Pixels	628 x 582 (PAL), 510 x 492 (NTSC)
Auto Exposure	1/60 - 1/15000 sec
Backlight Compensation (BCC)	No
Wired or Wireless	Wired
Frequency	N/A
Transmission Range	Depends on cable length
Cable Length	70ft (22m)
Camera Channels	N/A
Receiver	N/A
	Visibility
Visual Distance	Sees up to 330ft (100m)
Lens Focus/Visual Angle	40
	Night Vision
Number of infrared LEDs	11
Range in the dark	Up to 12 - 15ft (4-5m)
	Other Features
Camera Suitability	Indoors & Outdoors
Water Resistant	Yes
Audio Range	N/A
Monitor	Not included
Power Consumption	1.5W
Camera Operating Power	8 - 12V
Camera Operating Temperatures	-4F to 140F (-20C to 60 C)
Stand	Included
Tilt/Adjustable	Yes
Weight (out of pack)	7 oz (200g)

TV Camera Observation System - Color
Color Security Camera
Old Code: SW-P-TCOSC, New Code: SW213-TOC

Protect your valuable property and loved ones with Swann's TV Camera Observation System. Using a high quality colour lens system the camera delivers crystal-clear pictures to a TV VCR or Swann security monitor.

The color camera has an in-built microphone allowing you to hear exactly what's going on. Mount it to a wall or ceiling and tilt the adjustable stand to achieve a viewing angle that suits your needs.

Features

• Discreet surveillance for office, retail, restaurant or showrooms
• High quality colour images
• Easy to install
• 18m / 60ft cable included
• Easily adjustable to 360 and up or down to 90
• Plugs directly into TV, VCR, DVR, monitor or Quad Processor
