Overview

Features

• Connects to your existing Wi-Fi network through IC-5170SC.
• Transmits temperature and humidity information wirelessly.
• Automatic alerts to inform you when temperature or humidity exceeds or falls below your settings.
• Easily pair with IC-5170SC and attach to places you want to monitor remotely.
• LED for pairing status and low-battery indication. Push alert when the sensor’s battery is low.

Overview

Makes Your Home More Comfortable

The WS-2003Ps dual temperature and humidity sensor keeps you aware of micro climate changes in your environment. People often receive daily weather reports to choose clothes for warm or cold weather outside but dont know much about indoor conditions.

With better awareness of temperature and humidity levels inside, you can be much more comfortable at home and prevent family from discomfort or health issues caused by dry air or moisture problems. An indoor sensor is an excellent tool to monitor and manage the temperature and humidity inside your home.

The sensor can also be easily fitted into any space where temperature and humidity levels are important to prevent damage to items. You can protect plants, leather, toys and computer, communications or consumer electronics from excessive heat, cold or humidity with the remote monitoring and alerts capability of the sensor.

Works over Wi-Fi & 2.4GHz RF

Works over Wi-Fi & 2.4GHEdimax smart sensors are universally compatible with your existing Wi-Fi network. They work over 2.4GHz RF technology which provides proven, stable and secure wireless data transmission.

Low Battery Alerts

Edimax smart sensors are powered by AAA batteries which are easy to replace. The sensor’s low-power design enables long battery life with daily use. When battery levels are low, you’ll be informed by the EdiLife mobile app in plenty of time to get replacements.

Health Care

Stay informed and protected.

Rubbing your eyes, sneezing, coughing or feeling itchy at home? It’s likely caused by micro-climate changes in your home. The WS-2003P keeps you aware of invisible temperature and humidity changes with instant warnings that prevent you and your family from discomfort or health issues caused by dry air or moisture problems.

Comfort

Goodbye to bad indoor conditions.

Since outdoor air pollution is getting worse in our era, it’s more important than ever to make your home a place of good health. You really need a high-quality environment sensor to monitor indoor conditions, and make a happier home for your family.

Peace of Mind

Instant alerts with EdiLife app.

Your home is full of irreplaceable things that mean a lot to you. The EdiLife app makes it super easy to use your WS-2003P and monitor indoor conditions. Things like plants, leather, toys and computer, communications or consumer electronics can all suffer badly from excessive heat, cold or humidity if you don’t control your environment.

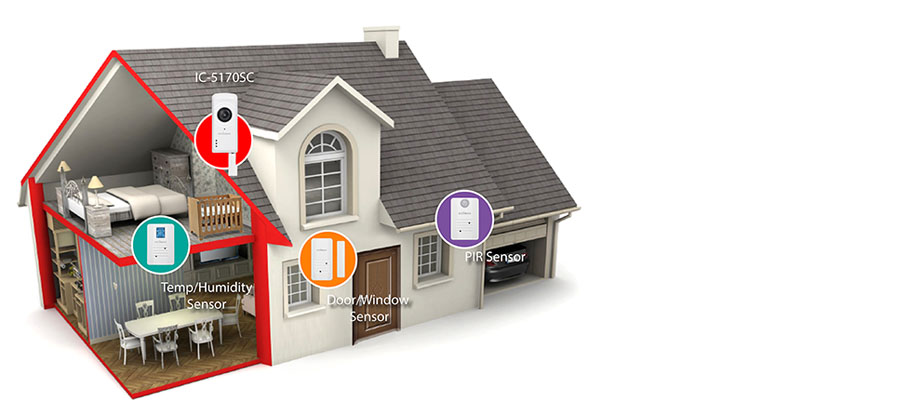

Connects to IC-5170SC for complete range of monitoring

The WS-2003P Temperature & Humidity Sensor works with the IC-5170SC gateway which to offer wider angle views than conventional Wi-Fi cameras, the IC-5170SC’s fisheye camera can cover your front door, garage or a whole room without surveillance blind spots. Compared with installations of other cameras on the market, the IC-5170SC not only slashes the cost of devices, storage space and bandwidth – but provides more convenience to work with multiple environment sensors to watch and secure your properties at the same time. It’s effective regardless of whether you’re living in a small apartment or a mansion.

180° Panoramic View over IC-5170SC

The IC-5170SC provides a 180-degree panoramic view for an excellent field-of-vision across an entire room. It also can be focused on areas in detail with high quality video streaming. Clearly see your loved one kids, pets or the elder - in every moment to offer you a great peace-of-mind.

Supports up to 32 sensors

Affordable home automation isnt a dream. Pair up to 32 sensors with the IC-5170SC , each type of sensor max 8pcs, and fit the sensors wherever you need around your home. No installation costs. No monthly fees. No subscription required.

Free EdiLife App

Works with the free EdiLife app to provide live views and real-time notifications of events triggered by the multi-environment sensors. With other EdiLife benefits such as push notifications, video and events logs, and more.

Edimax Cloud

Wherever there’s an Internet connection you can always connect with the IC-5170SC using your smartphone.

Flexible Storage Options

Triggered by sensors, recordings from the IC-5170SC can be saved directly to microSD, SDHC, NAS, Google Drive or Dropbox* – flexible options for you to save video on the cloud or local storage. Save events directly to your NAS or cloud storage instead of local physical devices for remote backup.

Easy Installation

One touch to pair with the IC-5170SC, and easily attaches to places you want to monitor. No screwdriver required.

Specifications

WS-2003P  Smart Wireless Temperature & Humidity Sensor Add-on Accessory for IC-5170SC
Dimensions	66 x 44 x 25 mm
Connectivity	Works with IC-5170SC over existing Wi-Fi network
Radio Frequency	2.4GHz
Power	AAA batteries (3 batteries included)
Operating Range	Up to 40 meters indoors
Temperature Range	0 - 50 DegreeC
Humidity Range	20% - 90% RH
Management	EdiLife: free mobile app for iPhone, iPad & Android
Features	Connects to your existing Wi-Fi network through IC-5170SC.
	Transmits temperature and humidity information wirelessly.
	Easily pair with IC-5170SC and attach to places you want to remotely monitor.
	Battery operated, no wiring necessary.
	LED for pairing status and low-battery indication. Push alert when the sensors battery is low.
	Up to 32 sensors can be used with IC-5170SC wireless dongle. Each type sensor max. 8pcs.
Operating Conditions	0-40 DegreeC

Overview

Features

• Connects to your existing Wi-Fi network through IC-5170SC.
• Automatic alerts to inform you when motions is detected.
• Easily pair with IC-5170SC and attach to places you want to remotely monitor.
• Battery operated, no wiring necessary.
• LED for pairing status and low-battery indication. Push alert when the sensor’s battery is low..

Overview

Accurate Automatic Motion Detection

The WS-2002P Passive Infrared (PIR) Sensor is a smart motion sensor that accurately detects motion via infrared radiation caused by temperature changes - such as when a person or animal passes by the sensor. With the sensors 3 meter detection range, you can protect your house and environment and receive motion-alert push notifications and video footage, to see exactly what the sensor detected. The accuracy of a PIR avoids false alerts from movement such as shadows, street lights or branches swaying in the breeze.

Works over Wi-Fi & 2.4GHz RF

Edimax smart sensors are universally compatible with your existing Wi-Fi network. They work over 2.4GHz RF technology which provides proven, stable and secure wireless data transmission.

Low Battery Alerts

Edimax smart sensors are powered by AAA batteries which are easy to replace. The sensors low-power design enables long battery life with daily use. When battery levels are low, youll be informed by the EdiLife mobile app in plenty of time to get replacements.

Peace of Mind

For safe and protected homes.

Sometimes you just want to make sure that everything & everyone is safe and sound. With the precise, reliable motion-detection of the WS-2002P’s PIR sensor and real-time videos over IC-5170SC, you can be assured that everything is secure.

More Accurate

Be calm and stress-free without false alerts.

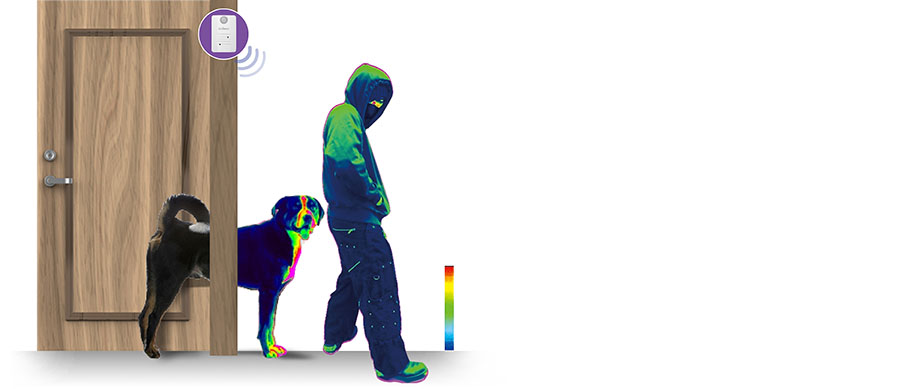

Conventional motion sensors can’t differentiate types of motion like a PIR sensor. By detecting changes in IR radiation, the sensor won’t disturb you with annoying alerts about shadows or lighting changes.

Safe Zone Watcher

Keep an eye on family.

Little children and toddlers safety can always be a concern. Use a PIR sensor to detect if they’re going somewhere you don’t want them to be, and keep them in your safe zone. You can use the sensor in the same way for elderly relatives or pets.

Connects to IC-5170SC for complete range of monitoring

The WS-2002P PIR Motion Sensor works with the IC-5170SC gateway which to offer wider angle views than conventional Wi-Fi cameras, the IC-5170SCs fisheye camera can cover your front door, garage or a whole room without surveillance blind spots. Compared with installations of other cameras on the market, the IC-5170SC not only slashes the cost of devices, storage space and bandwidth but provides more convenience to work with multiple environment sensors to watch and secure your properties at the same time. Its effective regardless of whether youre living in a small apartment or a mansion.

180° Panoramic View over IC-5170SC

The IC-5170SC provides a 180-degree panoramic view for an excellent field-of-vision across an entire room. It also can be focused on areas in detail with high quality video streaming. Clearly see your loved one – kids, pets or the elder - in every moment to offer you a great peace-of-mind.

Supports up to 32 sensors

Affordable home automation isn’t a dream. Pair up to 32 sensors with the IC-5170SC , each type of sensor max 8pcs, and fit the sensors wherever you need around your home. No installation costs. No monthly fees. No subscription required.

Free EdiLife App

Works with the free EdiLife app to provide live views and real-time notifications of events triggered by the multi-environment sensors. With other EdiLife benefits such as push notifications, video and events logs, and more.

Edimax Cloud

Wherever there’s an Internet connection you can always connect with the IC-5170SC using your smartphone.

Flexible Storage Options

Triggered by sensors, recordings from the IC-5170SC can be saved directly to microSD, SDHC, NAS, Google Drive or Dropbox* flexible options for you to save video on the cloud or local storage. Save events directly to your NAS or cloud storage instead of local physical devices for remote backup.

Easy Installation

One touch to pair with the IC-5170SC, and easily attaches to places you want to monitor. No screwdriver required.

Specifications

WS-2002P  Smart Wireless PIR Motion Sensor Add-on Accessory for IC-5170SC
Dimensions	66 x 44 x 25 mm
Connectivity	Works with IC-5170SC over existing Wi-Fi network
Radio Frequency	2.4GHz
Power	AAA batteries (3 batteries included)
Operating Range	Up to 40 meters indoors
Coverage Angle	110
Detect Distance	3 meters
Management	EdiLife: free mobile app for iPhone, iPad & Android
Features	Connects to your existing Wi-Fi network through IC-5170SC.
	Automatic alerts to inform you when motions is detected.
	Easily pair with IC-5170SC and attach to places you want to remotely monitor.
	Battery operated, no wiring necessary.
	LED for pairing status and low-battery indication. Push alert when the sensors battery is low.
	Up to 32 sensors can be used with IC-5170SC wireless dongle. Each type sensor max. 8pcs.
Operating Conditions	0-40 DegreeC



Overview

Features

• Connects to your existing Wi-Fi network through IC-5170SC.
• Built-in reed switch works with 2.4G RF to send warnings immediately when the Door / Window Sensor separate.
• Slim design. Ideal for doors, windows, safes or important drawers.
• Easily pair with IC-5170SC and attach to places you want to remotely monitor.
• LED for pairing status and low-battery indication. Push alert when the sensor’s battery is low.

Overview

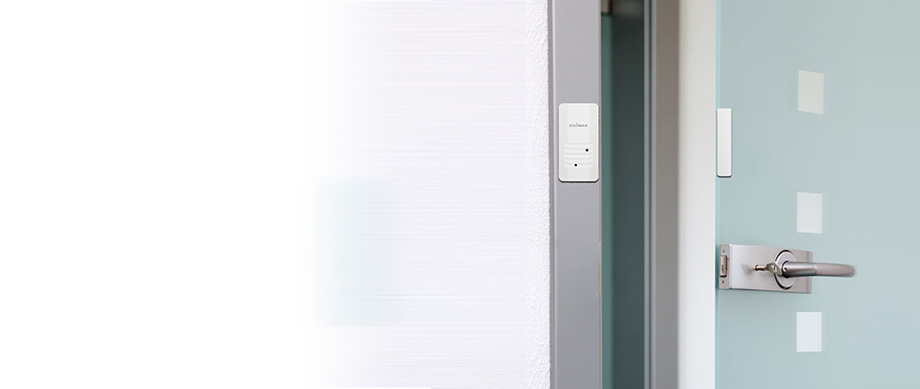

Instant Alerts When Doors and Windows are Open or Closed

The WS-2001P Door and Window Sensor is one of Edimaxs range of Smart Sensors. Its built-in reed switch works with 2.4GHz RF and connects to your existing home Wi-Fi network, with a slim design thats ideal for narrow jamb doors and windows.

The sensor makes sure your doors and windows are shut so that pets cant escape and valuables are safe, or you can even use the sensors on closet doors and drawers. It works with the IC-5170SC. With the convenience of the IC-5170SC surveillance system, youll be informed with video alerts when your loved ones arrive or leave home. Youll have no worries about leaving a back door ajar or the side windows open at night, and get immediate warnings when the door or windows are opened.

Works over Wi-Fi & 2.4GHz RF

Edimax smart sensors are universally compatible with your existing Wi-Fi network. They work over 2.4GHz RF technology which provides proven, stable and secure wireless data transmission.

Low Battery Alerts

Edimax smart sensors are powered by AAA batteries which are easy to replace. The sensor’s low-power design enables long battery life with daily use. When battery levels are low, you’ll be informed by the EdiLife mobile app in plenty of time to get replacements.

Convenience

Stay in a cozy bed on an icy cold evening.

You dont need to get up to check that doors or windows are closed at bedtime. Make sure everythings secure from your warm bed.

Care for Loved Ones

No worries when you’re working late.

Having a busy day at work? Cant get out of the office on time? Check in at home from your smartphone and know when the kids are home from school and everythings alright at home.

Peace of Mind

Know what’s happening at home, wherever you are.

Youll always be informed on your smartphone with real-time video alerts, no matter where you are. So youll know if its just your kids playing or an unwelcome guest at the door.

Connects to IC-5170SC for complete range of monitoring

The WS-2001P Door & Window Sensor works with the IC-5170SC gateway which to offer wider angle views than conventional Wi-Fi cameras, the IC-5170SCs fisheye camera can cover your front door, garage or a whole room without surveillance blind spots. Compared with installations of other cameras on the market, the IC-5170SC not only slashes the cost of devices, storage space and bandwidth but provides more convenience to work with multiple environment sensors to watch and secure your properties at the same time. Its effective regardless of whether youre living in a small apartment or a mansion.

180° Panoramic View over IC-5170SC

The IC-5170SC provides a 180-degree panoramic view for an excellent field-of-vision across an entire room. It also can be focused on areas in detail with high quality video streaming. Clearly see your loved one – kids, pets or the elder - in every moment to offer you a great peace-of-mind.

Supports up to 32 Sensors

Affordable home automation isn’t a dream. Pair up to 32 sensors with the IC-5170SC , each type of sensor max 8pcs, and fit the sensors wherever you need around your home. No installation costs. No monthly fees. No subscription required.

Free EdiLife App

Works with the free EdiLife app to provide live views and real-time notifications of events triggered by the multi-environment sensors. With other EdiLife benefits such as push notifications, video and events logs, and more.

Edimax Cloud

Wherever there’s an Internet connection you can always connect with the IC-5170SC using your smartphone.

Flexible Storage Options

Triggered by sensors, recordings from the IC-5170SC can be saved directly to microSD, SDHC, NAS, Google Drive or Dropbox* – flexible options for you to save video on the cloud or local storage. Save events directly to your NAS or cloud storage instead of local physical devices for remote backup.

Easy Installation

One touch to pair with the IC-5170SC, and easily attaches to places you want to monitor. No screwdriver required.

Specifications

WS-2001P  Smart Wireless Door & Window Sensor Add-on Accessory for IC-5170SC
Dimensions	66 x 33.6 x 25 mm
Connectivity	Works with IC-5170SC over existing Wi-Fi network
Radio Frequency	2.4GHz
Power	AAA batteries (2 batteries included)
Operating Range	Up to 40 meters indoors
Management	EdiLife: free mobile app for iPhone, iPad & Android
Features	Connects to your existing Wi-Fi network through IC-5170SC.
	Built-in reed switch works with 2.4G RF to send warnings immediately when the Door / Window Sensor separate.
	Slim design. Ideal for doors, windows, safes or important drawers.
	Easily pair with IC-5170SC and attach to places you want to remotely monitor.
	LED for pairing status and low-battery indication. Push alert when the sensors battery is low.
	Up to 32 sensors can be used with IC-5170SC wireless dongle. Each type sensor max. 8pcs.
Operating Conditions	0-40 DegreeC

Overview

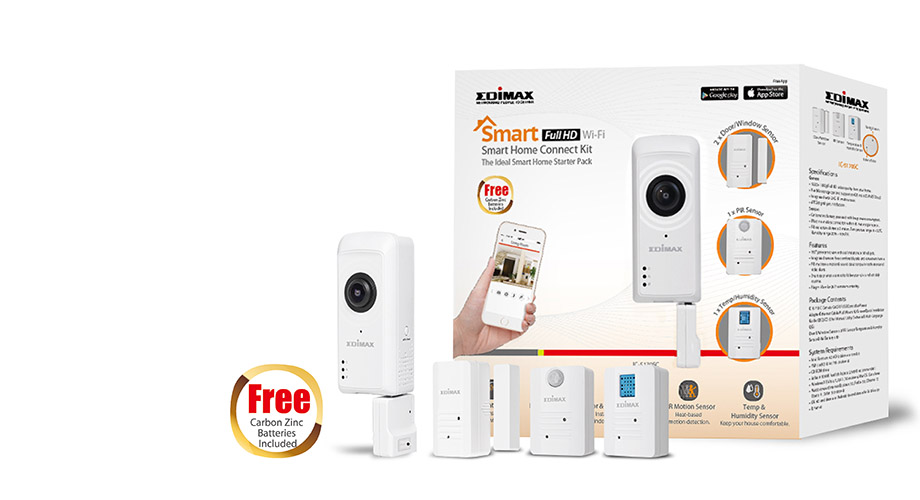

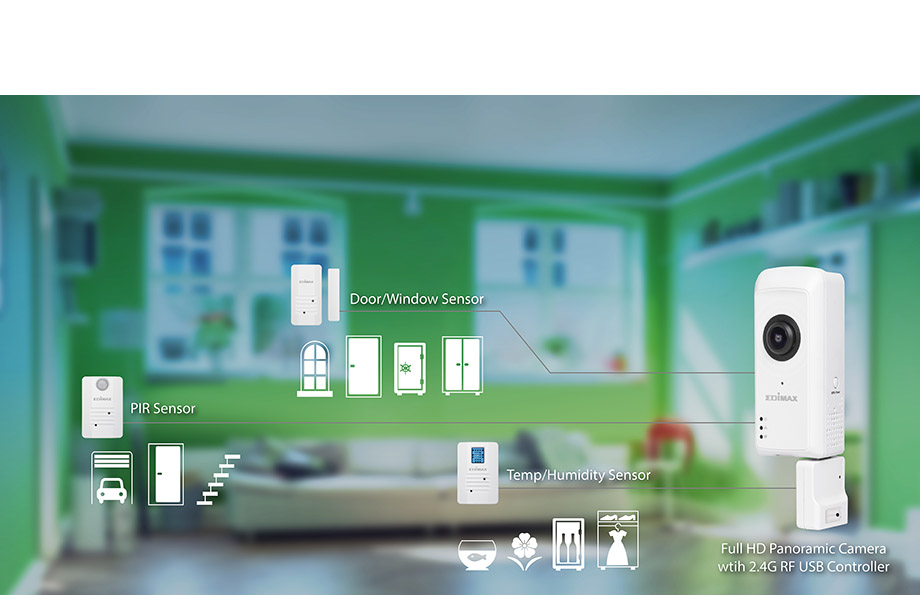

The Ideal Smart Home Starter Pack

The IC-5170SC integrates a Full HD Wi-Fi fisheye camera with two door/window sensors, one PIR heat-based motion sensor and a temperature & humidity sensor. It can see, sense & secure your property and instantly show you real-time status and events around your house on your smartphone. And with the free EdiLife app, any activity at home can be monitored when youre not there. The IC-5170SC is simply the best all-in-one Smart Home Sensor Kit youre looking for.

Affordable Home Automation.

Universal compatibility with any Wi-Fi router so you dont have to install another home center or hub to manage your smart devices. Easily attach the sensors and connect to the gateway automatically, and let the free EdiLife app take care of the rest. Remote-monitoring, accurate detections of environment changes and instant notifications and alerts.

Full HD Wi-Fi Fisheye Cloud Camera

Cover Everything with Intelligent Security

Offering wider angle views than conventional Wi-Fi cameras, the IC-5170SCs fisheye camera can cover your front door, garage or a whole room without surveillance blind spots. Compared with installations of other cameras on the market, the IC-5170SC not only slashes the cost of devices, storage space and bandwidth but provides more convenience to work with multiple environment sensors to watch and secure your properties at the same time. Its effective regardless of whether youre living in a small apartment or a mansion.

Door & Window Sensors

Instant Alerts When Doors and Windows are Open or Closed

Built-in reed switch works with 2.4G RF and connects to your existing home Wi-Fi network, with a slim design thats ideal for narrow jamb doors and windows. Make sure your doors and windows are shut so that pets cant escape and valuables are safe or you can even use the sensors on closet doors and drawers. With the convenience of the IC-5170SC youll be informed with video alerts when your loved ones arrive or leave home. No worries about leaving a back door ajar or the side windows open at night, and get immediate warnings when the door or windows are opened by exterior forces.

PIR Motion Sensor

For Accurate & Automatic Detection

The Passive Infrared (PIR) Sensor is a highly precise sensor that detects motion via infrared radiation caused by temperature changes – such as when a person or animal passes by – and sends push notification to your smartphone. It’s designed to protect your house from intruders and avoid false alerts from movement such as shadows, street lights or branches swaying in the breeze.

Temperature & Humidity Sensor

Makes Your Home More Comfortable for Loved Ones

The IC-5170SCs dual temperature and humidity sensor keeps you aware of micro climate changes in your environment. People often receive daily weather reports to choose clothes for warm or cold weather outside but dont know much about indoor conditions. With better awareness of temperature and humidity levels inside, you can be much more comfortable at home and prevent family from discomfort or health issues caused by dry air or moisture problems. An indoor sensor is an excellent tool to monitor and manage the temperature and humidity inside your home.

The sensor can also be easily fitted into any space where temperature and humidity levels are important to prevent damage to items. You can protect plants, leather, toys and computer, communications or consumer electronics from excessive heat, cold or humidity with the remote monitoring and alerts capability of the sensor.

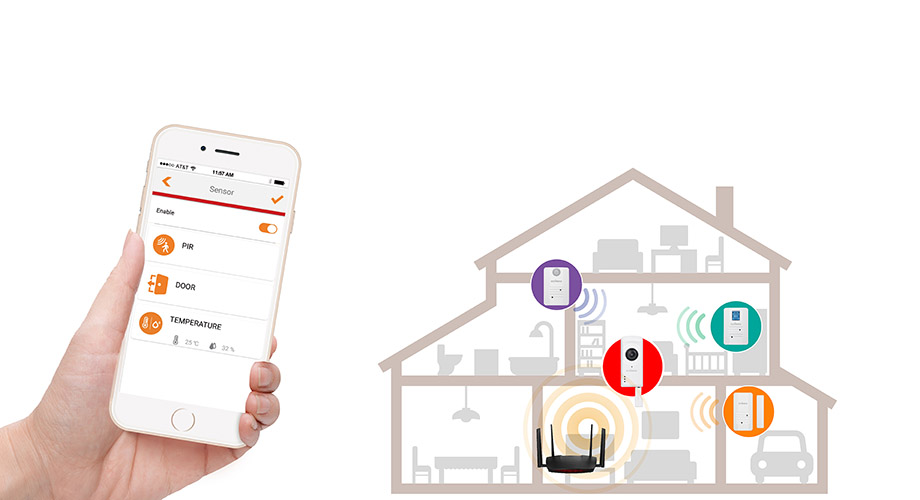

One App for Everything

Works with the free EdiLife app to provide live views and real-time notifications of events triggered by the multi-environment sensors. In addition, EdiLife offers a range of other benefits such as push notifications, video and events logs, and more.

Edimax Cloud

Wherever there’s an Internet connection you can always connect with the IC-5170SC using your smartphone, thanks to Edimax Cloud Service. It’s no problem where you are, just check out your house from the app anytime you want.

Flexible Storage Options

Recordings from the IC-5170SC can be saved directly to microSD, SDHC, NAS, Google Drive or Dropbox flexible options for you to save video on the cloud or local storage. Save events directly to your NAS or cloud storage instead of local physical devices for remote backup.

Batteries Included

AAA battery powered for sensors.

10 Carbon Zinc batteries included.

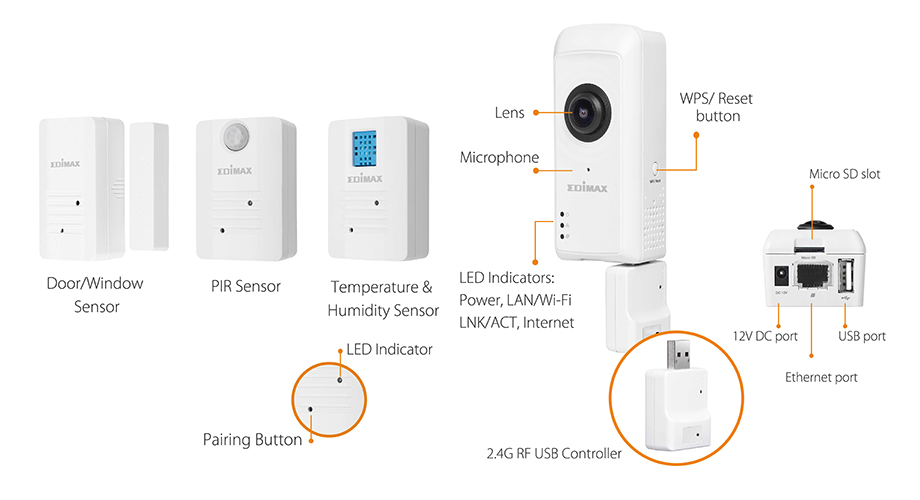

Interface

Specifications

IC-5170SC Smart Home Connect Kit
Dimensions	131.57 mm(H) x 40.8mm(W) x 39.32mm(D)
	Door/Window Sensor: 66 x 33.6 x 25 mm
	PIR Motion Sensor: 66 x 44 x 25 mm
	Temperature & Humidity Sensor: 66 x 44 x 25 mm
Camera	Min Illumination: 1.0 Lux
	Sensor: 1/3" CMOS, 3M pixels
	Lens: 1.30mm / F2.5
	Viewing Angle: Panoramic 180 degrees (H), 142 degrees (V) & 206 degrees (D)
	Zoom: 4x Digital
Connectivity	IEEE 802.3/802.3u
	IEEE 802.11 b/g/n , 1 internal Wi-Fi antenna
	2.4GHz RF
Video	H.264 & M-JPEG dual coded video compression
	Max Resolution:
	1920*1080 1080P (H.264)
	1280*720 720P (M-JPEG)
	Frame rate: 30fps (1080P/720P/VGA/QVGA)
Audio	Built-in microphone
Management	EdiLife: free mobile app for iPhone, iPad & Android
	EdiView Finder: web management interface fro Windows/Mac
	16-channel viewer
	Firmware upgradable
Features	Motion & sound detection trigger recording and alerts to microSD/SDHC card, email and FTP
	Supports 64G microSD/SDHC card slot for local storage
	Extend free cloud storage to personal accounts or other 3rd party storage options
Sensor Model Name & Efficiency
WS-2001P	Door/Window
	Sensors
	Operating range - up to
	40 meters indoor
WS-2002P	PIR Motion
	Sensor
	Operating range - up to
	40 meters indoor
	Coverage angle: 110
	Detect distance: 3 meters
WS-2003P	Temperature &
	Humidity Sensor
	Operating range - up to 40 meters
	indoor
	Temperature range: 0 - 50 DegreeC
	Humidity range: 20% - 90% RH
	Up to 24 sensors can be used with IC-5170SC wireless dongle (each type of sensor max 8pcs).
Power	Camera: 12V DC/1A
	Sensors: AAA batteries.
Operating Conditions	0-40 DegreeC

Overview

Features

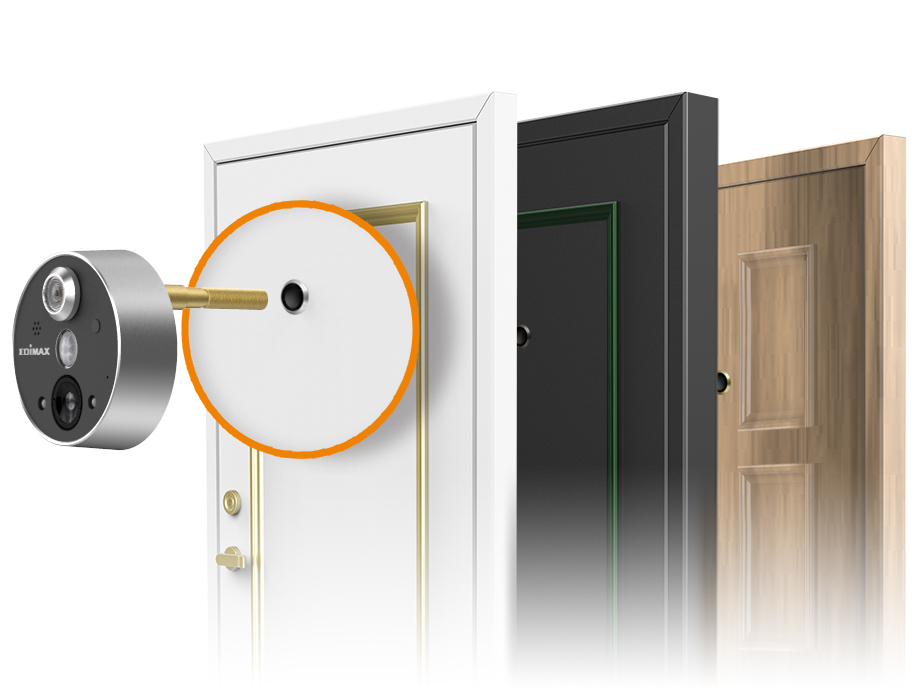

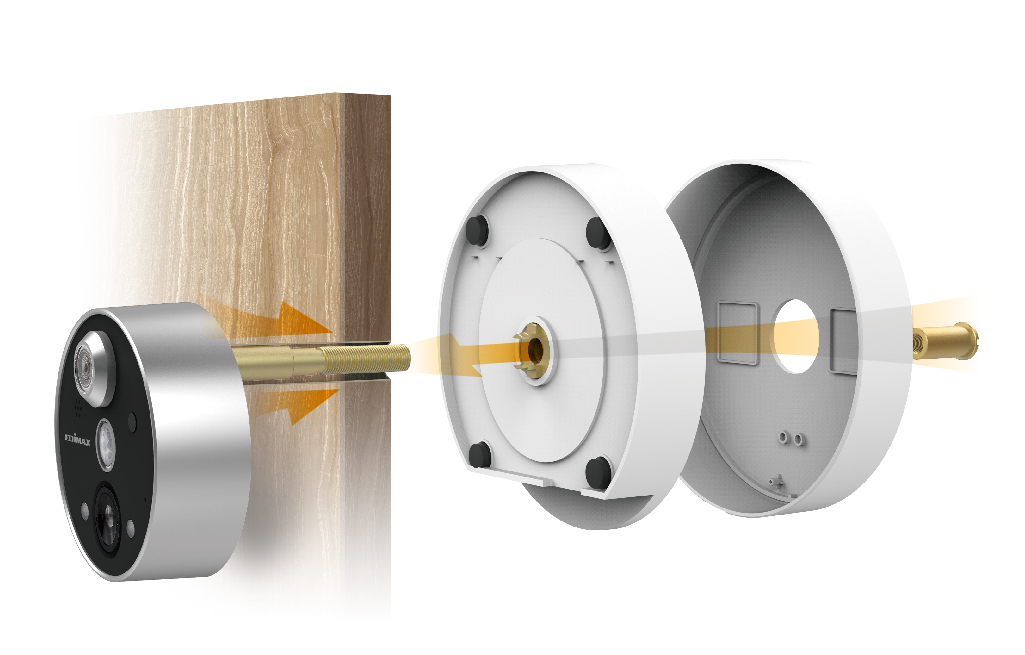

• Extremely easy installation with a door hook.
• Don’t miss any delivers while you’re out.

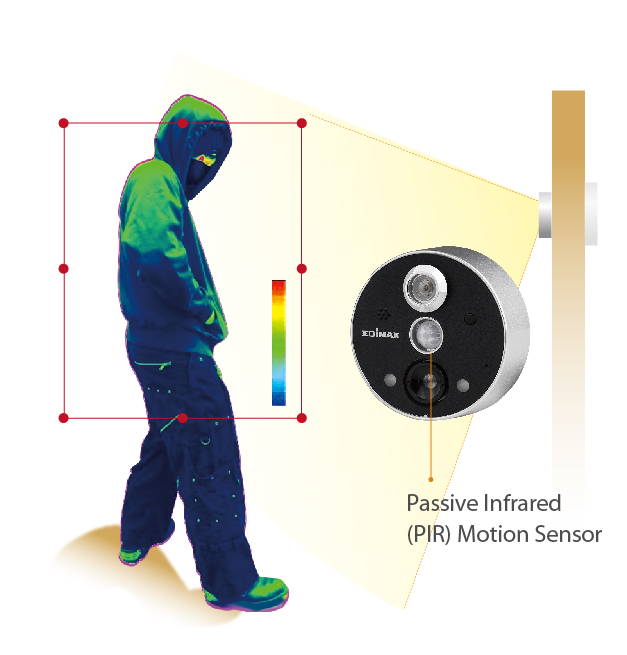

• Enhanced motion detection with passive infrared (PIR) sensor.

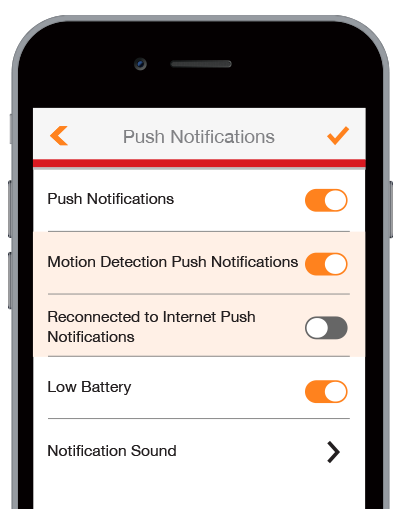

• Motion-detection push notifications.

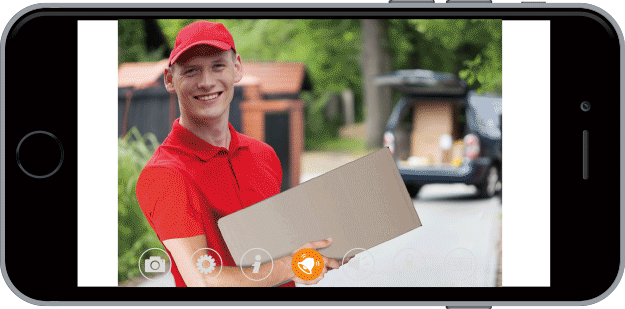

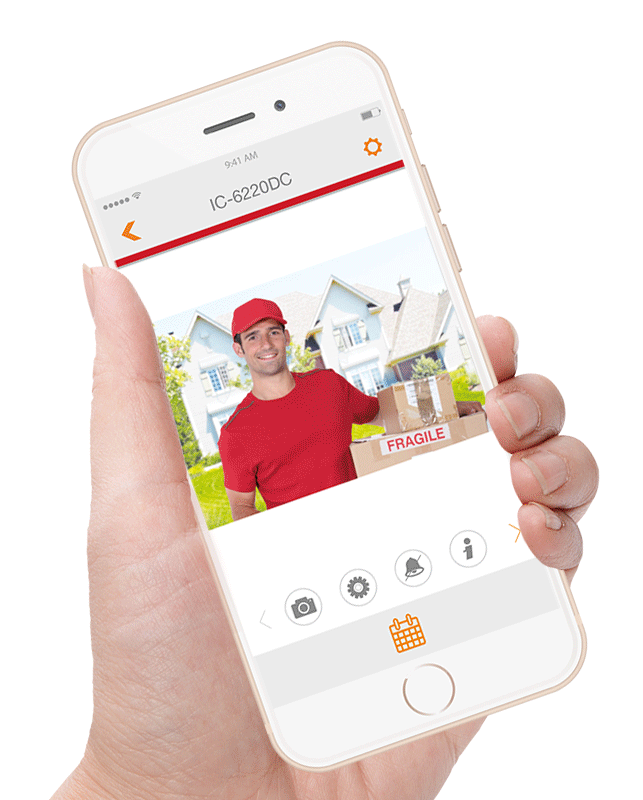

• Two-way audio. See who’s out there and answer your door from anywhere.
• Easy DIY installation with Plug-n-View for configuration-free setup.
• 640 x 480 VGA video quality from your door.
• Motion-JPEG video compression.

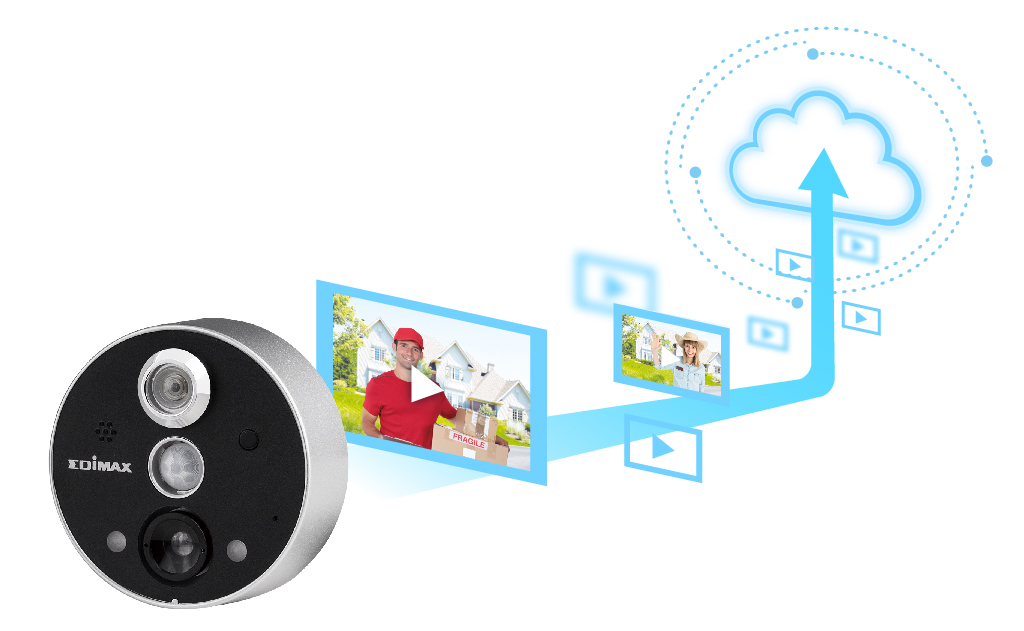

• Flexible storage options: supports 64G microSD/NAS/Cloud.
• Night vision to see up to 1.5 meters.

Overview

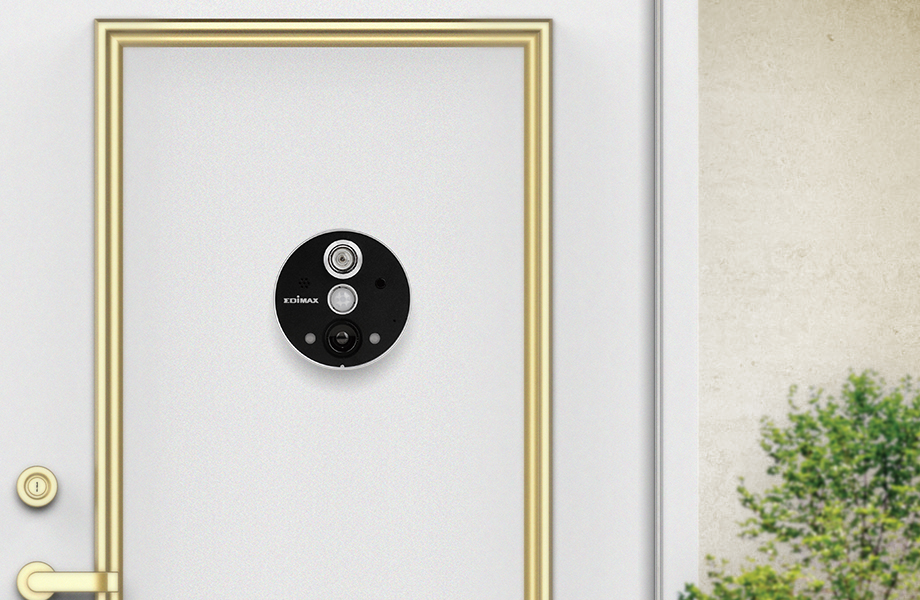

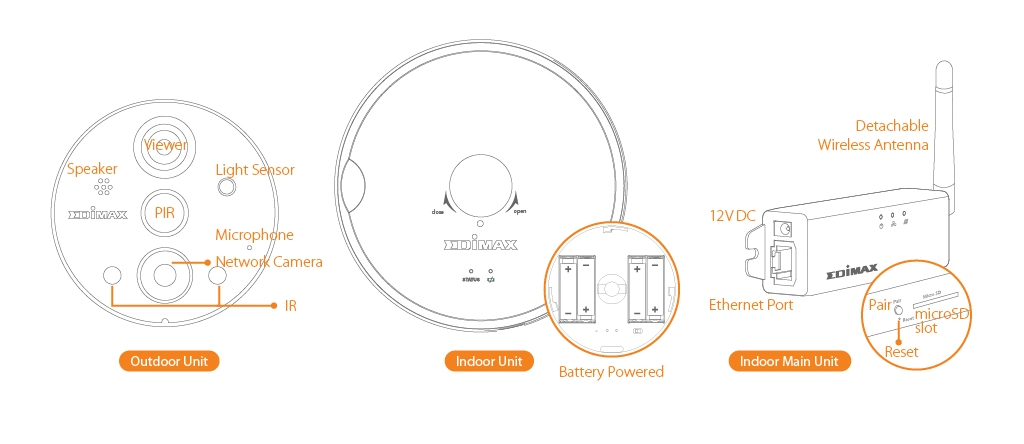

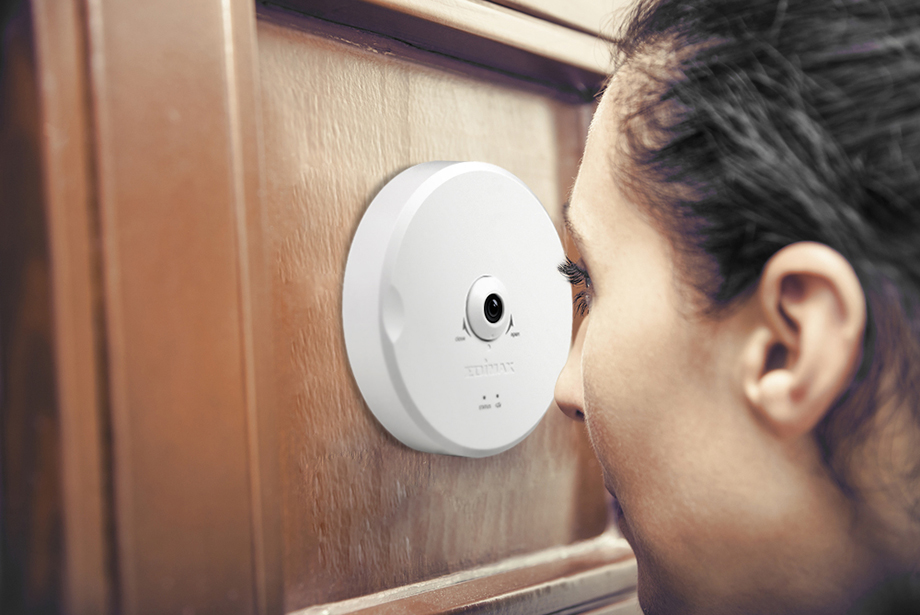

The IC-6230DC is a brand new wireless door camera that hooks securely over the door without any screws or installation tools. It fits any door and provides crisp images along with an advanced motion detection system with passive infrared (PIR) sensor.Including mobile push notifications and powerful night vision for clear views in the dark. Just check your smartphone using the free all-in-one EdiLife iOS & Android app to see whos there from the safety of your home or while youre out, day or night.

Comfort and Convenience

Always experience the comfort and convenience of a smart, connected the door hook with IC-6230DC from the mobile devices.

• 24/7 easy remote monitoring on your smartphone or tablet.
• See and answer your door and speak to visitors from anywhere.
• Fits securely to door and features push notification alerts.
• PIR, sound or motion detection triggered snapshots and recording.



Live View and Two-Way Audio

Built-in high-quality microphone and speaker for two-way voice communication, so you can view & talk with whoever’s there from anywhere.

Screwless & Wireless Installation

• DIY for your own surveillance without installation fees or monthly charges.
• Just hook and attached over the door with ease.
• Easy smartphone setup. Just pair the free EdiLife app with the IC-6230DC to watch a live stream in no time.

IC-6230DC Interface Diagram

Specifications

IC-6230DC Smart Wireless Door Hook Network Camera
Dimensions & Weight	Camera: Oudoor Unit: 48mm(H) x 82mm(W) x 43mm(D), Indoor Unit: 110mm(H) x 76mm(W) x 26mm(D)
	Wireless Receiver: 105mm(H) x 30.5mm(W) x 21mm (D)
Camera	Min Illumination: 0.1 Lux (Daylight < 4 Lux, turn on white LED)
	Sensor: 1/6.5" CMOS
	Lens: 2.59mm / F2.8
	Viewing Angle: Digital 90
	Night View: White LED * 2, upto 1.5 meters
Connectivity	IEEE 802.3/802.3u
	2.4G FHSS / 1 detachable antenna
Video	MJPEG video compression
	640 x 480 up to 15 fps / 320 x 240 up to 30 fps
	Resolution: VGA (640 x480), QVGA (320 x 240)
	Frame rate: 5, 10, 15, 20, 24 or 30 fps
	Built-in microphone & speaker
	Two-way audio
Management	EdiLife: free mobile app for iPhone, iPad & Android
	EdiVeiw Finder: web management interface fro Windows/Mac
	Firmware upgradable
Features	PIR sensor, motion/sound detection trigger recording and alerts to MicroSD/SDHC card, email and FTP
	Supports 64G microSD/SDHC card slot for local storage
	Extend free cloud storage to personal accounts or other 3rd party storage options
Power	Wireless Receiver- 12VDC/1A
	Camera: AA Battery x 4
Operating Conditions	040C, Humidity: 2080% RH (non-condensing)

Overview

Features

• Simple, optimal wireless signal coverage for home security
• Remotely monitor what's happening day and night
• See your door’s peephole on your smartphone wherever you are
• 2-way audio for answering the door anytime
• PIR sensor for precise motion detection
• Night vision to see up to 3 meters
• Easy DIY installation with trouble-free setup
• Flexible recordings storage options for safekeeping
• Maintains peephole functionality and fits the vast majority of door thickness

Overview

Answer the Door From Anywhere

Safety and Security

Home security always begins at the front door. The IC-6220DC is just like your front door security guard to keep burglars out of your house that taking care of your home security day and night, offering you peace-of-mind.

Wireless

The battery-powered peephole camera installs onto your door and works completely wire-free. There's no cable to your router required thanks to the included separate gateway unit which connects to your router instead, and communicates with your camera. This unique design enables fully wireless operation at your door and ensures that a reliable wireless signal is always available to your camera, as well as keeping inside your house neat, tidy and cable-free with only a few quick minutes needed for easy installation.

Convenient

No matter you are at home, at work, shopping or traveling, with the IC-6220DC wireless peephole door camera, you can always know who come to visit at your front door.

Moreover, with the IC-6220DC there's no need to be afraid when home alone. Especially reassuring for the elderly or pregnant women, you can see what’s happening from a mobile device and decide to answer the door or not. Receive important deliveries or notifications, or filter uninvited people or salesmen who visit.



PIR Sensor For Automatic Detection

Designed to avoid false alerts from movement such as shadows, street lights or branches swaying in the breeze, the IC-6220DC’s motion detection system adopts infrared heat-source sensing technology. Its PIR sensor can precisely detect objects that move across sensors with a heat differential such as humans or animals, and then send push notifications to the mobile device.

2-Way Audio For Listening and Talking

Listen and talk to someone who’s at the door with the IC-6220DC 2-Way audio feature. Always keep eyes on your gateway environment and build up immediately communication from anywhere. No worries to miss any important packages or notifications.

Smart EdiLife

Say goodbye to inconvenient and complicated setting procedures. Only a couple of taps on your smartphone and the free EdiLife app allows you to view live videos, receive push notifications, and listen or talk to someone at your door. And you can connect some of compatible Edimax smart products such as network cameras or smart plugs in a few simple steps, to access them remotely with mobile devices all of the time.

Receive video alerts or push notification while detecting motion

Listen to exterior sounds

Talk to someone whos at the door

Setup for connecting IC-6220DC

Support multi-languages and show the firmware version

Free Cloud Storage

Recorded videos can be saved, maintained, managed and backed up in the cloud for free and accessed from anywhere on the Internet. Just select your favorite cloud storage such as Google Drive or Dropbox and keep your video recordings safe for as long as you like, with support for NAS too.

Easy Installation

There’s no worries about door compatibility, since the IC-6220DC’s unique design fits the vast majority of door peepholes and still maintains the original peephole functionality. Easily install it by yourself with a few quick steps. It's just that friendly.

Step 1. Take out the existing peephole viewer
Step 2. Install the outdoor unit through your peephole
Step 3. Attach the indoor unit on the other side

High door compatibility



Maintains peephole functionality

IC-6220DC Interface Diagram

Specifications

IC-6220DC  Smart Wireless Peephole Network Camera
Dimensions	Camera Viewer : 75 x 25.5mm(D), the bolt excluded.
	Camera Battery Unit: 120 x 32.5mm(D)
	Wireless Receiver: 105mm(H) x 30.5mm(W)x 21mm (D)
Camera	Min Illumination: Daylight < 5 Lux to turn on IR light, 0 Lux when IR on
	Sensor: 1/6.5" CMOS
	Lens: 2.59mm / F2.8
	Viewing Angle: Digital 90 / Peephole 150
	Night View: IR LED * 2, upto 3 meters (1.5M for clear image)
Connectivity	IEEE 802.3/802.3u
	2.4G FHSS / 1 detachable antenna
Video	MJPEG video compression
	640 x 480 up to 15 fps / 320 x 240 up to 30 fps
	Resolution: VGA (640 x480), QVGA (320 x 240)
	Frame rate: 5, 10, 15, 20, 24 or 30 fps
Audio	Built-in microphone & speaker
	Two-way audio
Management	EdiLife: free mobile app for iPhone, iPad & Android
	EdiVeiw Finder: web management interface fro Windows/Mac
	Firmware upgradable
Features	PIR sensor, motion/sound detection triggered recording and alerts to MicroSD/SDHC card, email and FTP
	Supports 64G microSD/SDHC card slot for local storage
	Extend free cloud storage to personal accounts or other 3rd party storage options
Power	Wireless Receiver- 12VDC/1A
	Camera: AA Battery x 4
Operating Conditions	0-40 DegreeC, Humidity: 2080% RH (non-condensing)

Overview

Features

Capture, Record and Take Snapshot. Leave your PC behind

• Record HD footage in 1080p
• No PC required
• Single button recording
• Pause and resume recording
• Take snapshots while recording
• H.264 hardware compression
• Zero delay for pass-through video
• Built-in 2.5 HDD slotc

Overview

The latest tool in video recording is the EzRecorder 530. With this recorder, videos can be recorded at up to 1080p. The EzRecorder 530 is also a two-in-one solution for users who want to record and take snapshots.

Record up to 1080p video with the latest tool in recording. The EzRecorder 530, a PC-free recorder, only needs to be powered up and connected to a video source via an HDMI or component input to activate recording. Moreover, preserve the most important moments as static photos by snapshotting while recording, and save them to an external USB or internal 2.5 HDD. The H.264 hardware compression ensures sharp video quality, allowing files to be rendered in high resolution. The EzRecorder 530 is a straightforward, versatile solution for recording.

Features

• Record HD footage in 1080p
• No PC required
• One button recording
• Pause and resume recording
• Take snapshots while recording
• H.264 hardware compression
• Zero delay for pass-through video
• Built-in 2.5 HDD slot

What can't the EzRecorder 530 do for you?

Record with cameras or video equipment

The EzRecorder 530, a PC-free recording box, is capable of recording up to 1080p 60fps video resolution without delay. Integrate it into video systems to record videos for application in medicine, surveillance and a variety of other fields. Just as easily is the snapshot feature, allowing you to take snapshots while recording. Both types of media are saved to your choice of storage devices. Once uploaded to a PC, files can be edited. *Recording HD content with HDCP (High-Bandwidth Digital Content Protection) is not supported.

3-step set-up works PC-free

Set-up is as simple as 1-2-3. Plug it into a power source, connect it to a video source via an HDMI or component input, and press the record button. The EzRecorder 530 starts recording instantly without a PC.



Take snapshots while recording

Capture important moments by taking a snapshot at any time during the recording. Simply press the remote to snapshot, and save footage either to an external USB or internal 2.5 HDD.



Effective high resolution

The EzRecorder 530 is the single solution for quick, easy and seamless video recording. The advanced HD H.264 hardware compression technology maintains crisp AVI quality for video and crisp audio quality for MP3 formats to ensure recording continuity and integrity. High-resolution files are optimized for size to conserve storage.



Specifications



Input	HDMI[1]
	Component Video & Audio L/R[2]
	3.5mm Audio
	Microphone (Working Voltage: 3V)
	Note:
	[1] HDCP-protected content cannot be recorded
	[2] Cables not included. Please purchase separately
Output	HDMI
	3.5mm Audio: Headphones
Resolution
Input	480i, 480p, 576i, 576p, 720p, 1080i, 1080p (max: 1080p)
Record	480i, 480p, 576i, 576p, 720p 50/60, 1080i 50/60, 1080p 24/25/30 (max: 1080p*)
	*1080p@30/60 videos may be displayed as 1080i@60 on your TV.
Storage
Internal	2.5 SATA HDD (supports 7mm and 9.5mm)
	(9.5mm HDDs are recommended)
External	USB 2.0 HDD
	*HDDs are recommended over flash drives for storage
	*Format storage devices to NTFS file format before use
	*Storage not included
	*Please install or connect an appropriate storage device before using
Recording Format	AVI (Codec: H.264 and MP3)
Power Requirement	12V / 1.5A
