09/11
|
Edimax IC-9110W HD WiFi Mini Outdoor Network Day & Night Camera - 108 Degrees Diagonal Viewing Angle, 1280x720(Up to 30fps), IR Filter, 20-IR LEDs, microSD/SDHC Card SlotOverview
Features
- Innovative Outdoor Network Camera with indoor Wi-Fi Unit, providing more
freedom to place the camera anywhere
- Plug-n-View for 24/7 Remote Monitoring with free EdiLife or EdiView II app
on iPhone®, iPad® or Android® and 16 channel viewer software for computers
- 720p HD Video Quality with high resolution and rich detail
- Night Vision with infrared LEDs, ICR (IR Cut Filter Removal) and auto
light-sensor
- Motion Detection triggers recording and sends to email and ftp
- Push Notifications & Video Alert with event videos
- Indoor Wi-Fi Unit with microSD/SDHC Card Slot for local storage and better
security
- Industrial Durability Outdoor Camera with IP66 waterproof rating and
anti-cut bracket system
- Wireless & Ethernet Connection for flexible placement, and compatible
with IEEE 802.11b/g/n products

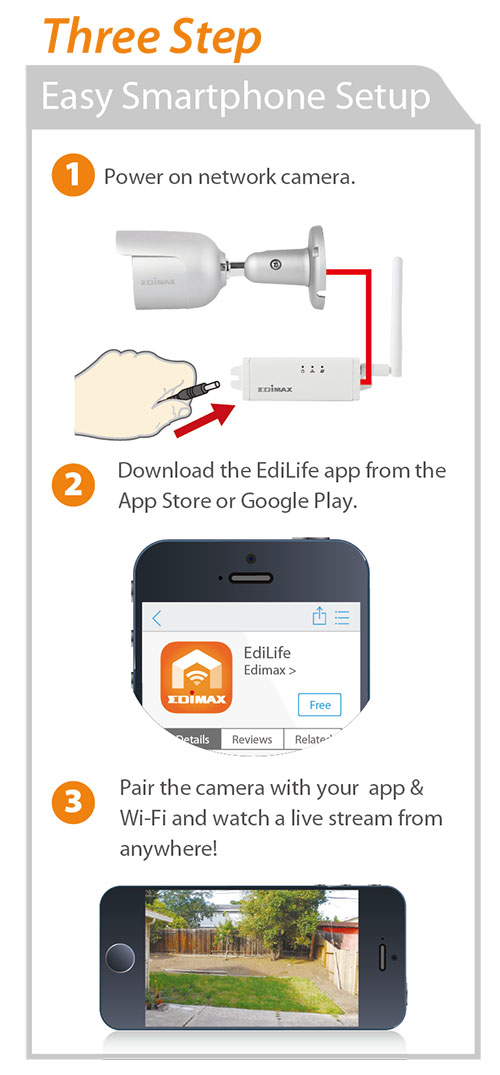

- Easy Setup with EdiView II & EdiLife mobile app and additional WPS
support
Overview
The Edimax IC-9110W is an innovative outdoor network camera with a unique
two-piece design featuring an outdoor network camera and an indoor Wi-Fi unit,
providing freedom to place the camera anywhere you need. Its a versatile
monitoring device ideal for monitoring your home, shop or factory during the
daytime or at night. With Edimax Plug-n-View technology, no complicated setup is
required and you can easily connect the camera to the cloud and monitor remotely
from a smartphone, tablet or laptop.
The IC-9110W additionally features a motion detection system and a built-in a
microSD/SDHC card slot. Motion detection can be configured according to
user-defined areas. Motion-triggered recording ensures that you capture any
illicit or suspicious activity and the wireless user interface allows for easy
installation and monitoring.

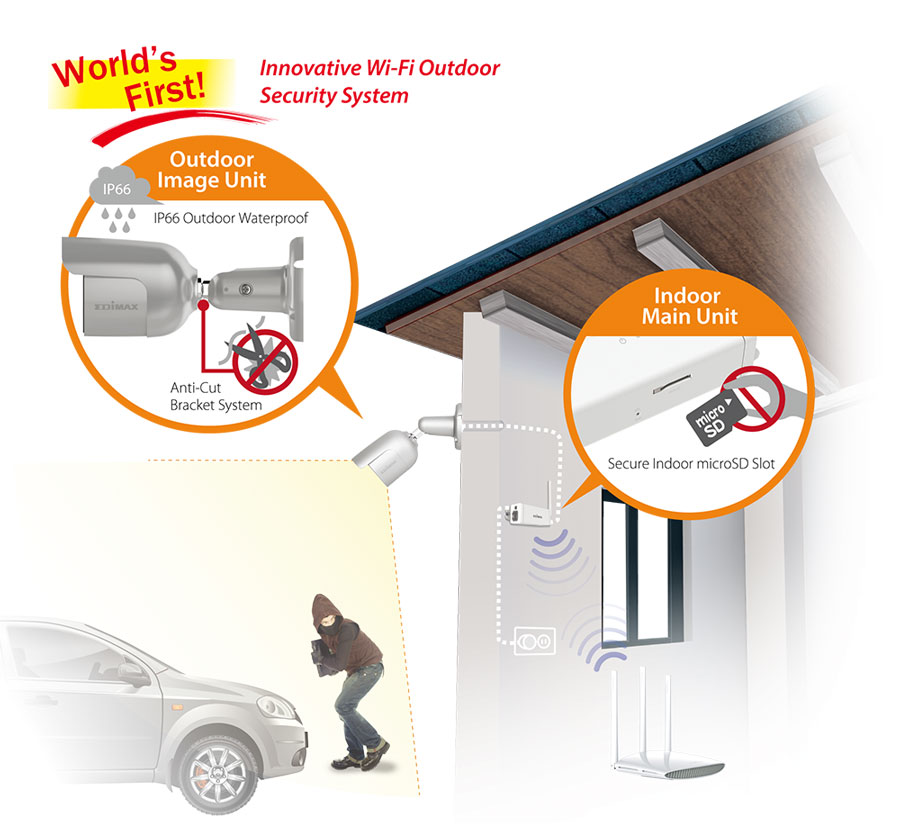

Innovative Outdoor Network Camera with Indoor Wi-Fi Unit
The smart and secure design includes an indoor Wi-Fi unit to connect to your
router, and an outdoor camera which connects to the indoor Wi-Fi unit with just
a single cable. This allows for greater freedom when placing your camera
outside. And it’s IP-66 rated for water & dust resistance with an anti-cut
bracket. The indoor main unit also features a microSD card slot for storage.
Plug-n-View for 24/7 Easy Remote Monitoring
Edimax Plug-n-View technology makes it easy for you to keep an eye on your
yard, garage, shop, factory or other assets wherever you go. With Plug-n-View
technology, you can connect your network camera to the cloud in a few simple
steps and access it remotely with a smartphone, tablet, or computer no matter
where you are.

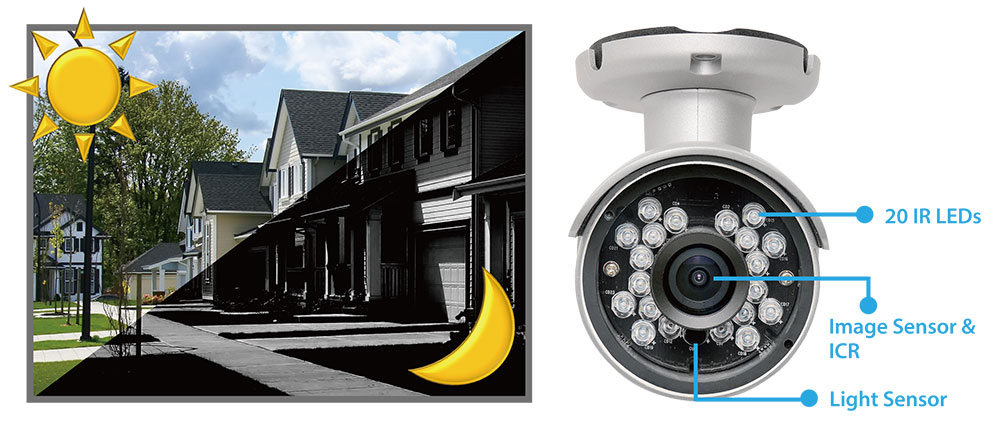

Night Vision
With a light sensor, image sensor and 20 infrared LEDs, the IC-9110W is well
equipped to meet outdoor security and surveillance needs - even in low-light and
night-time conditions. And with automatic ICR (IR Cut Filter Removal), infrared
light is filtered out during the day time (while allowed to pass at night)
ensuring exceptional video color quality at all times.

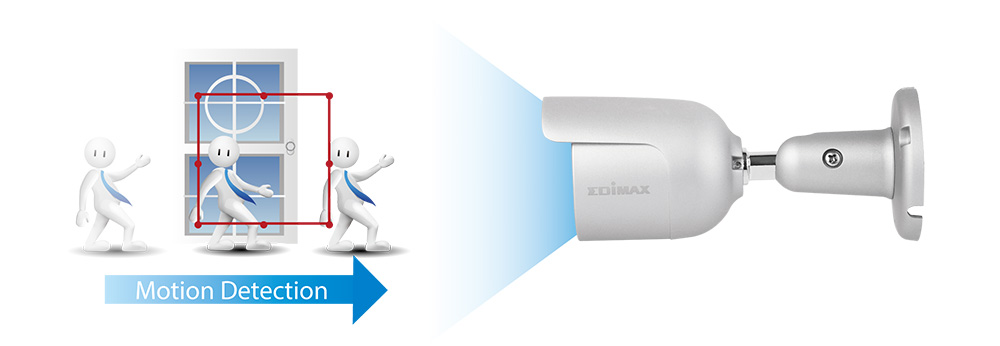

Motion Detection Triggered Recording
The powerful built-in motion detection system with pre-defined detection
regions, offers peace of mind that you will capture any illicit activity. The
network camera will produce video footage of the event immediately – storing the
data on a microSD/SDHC card or sending it automatically via email or ftp.
Push Notifications with Video Alerts
Supports push notifications with video alerts of events. When motion
detection is triggered, the IC-9110W starts to record video clips to a microSD
card and sends push notifications to your mobile devices, or sends email with
event videos.
High Quality Videos
The IC-9110W is built with a wide F2.0 lens which covers an impressive
diagonal viewing angle of 108 degrees. With a megapixel CMOS sensor, the network
camera is able to capture up to 720p (1280 x 720) videos at 30 frames per
second.

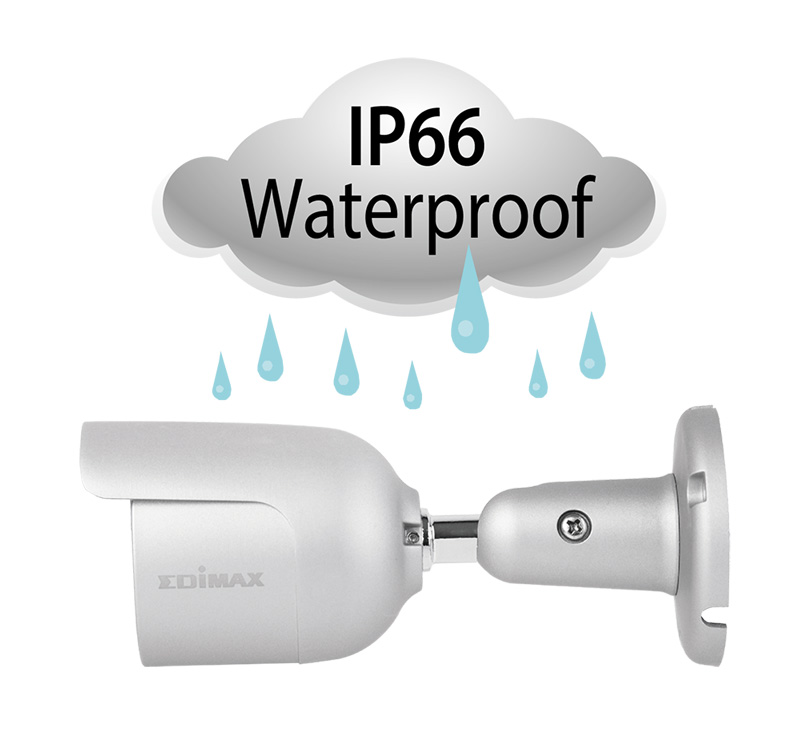

IP66 Outdoor Waterproof
The IC-9110W outdoor case has a solid metal IP66-rated waterproof housing
that protects the camera from dirt and rain. A wire-in bracket protects cables
from damage or tampering and provides a clean installation.

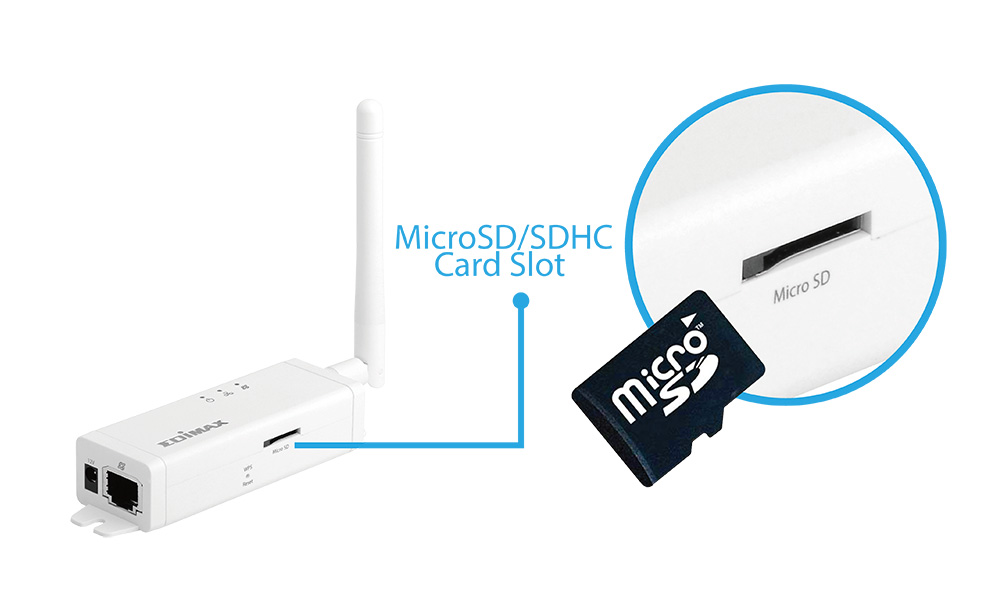

microSD/SDHC Card Slot for Local Storage*
A built-in MicroSD/SDHC card slot supports cards up to 32GB for local storage
and backup. *Minimum 8GB capacity microSD recommended. Less than 2GB capacity is
not supported.
SOFTWARE FEATURES
- Easy remote monitoring via iPhone, iPad, Android, PC & Mac
- High-speed H.264 & MJPEG video compression
- Push notifications with video alerts when motion is detected, for better
awareness than snapshots alone
- Motion detected videos to SD card, ftp or email
- Pre- & post-recording on motion detection
- Viewer software to access 16 network cameras simultaneously
- Manual/scheduled/cycle recording
APPLICAITON DIAGRAM
PACKAGE CONTENTS
- Network Camera IC-9110W (Outdoor Camera & Inddor Main Unit)
- Quick Installation Guide
- CD-ROM with Utility Software and User Manual
- Power Adapter
- Detachable External Antenna
- Ethernet Cable
- Mounting Kit (Outdoor Camera Screws, Indoor Main Unit Screw, Adhesive Pad
& Wall Template

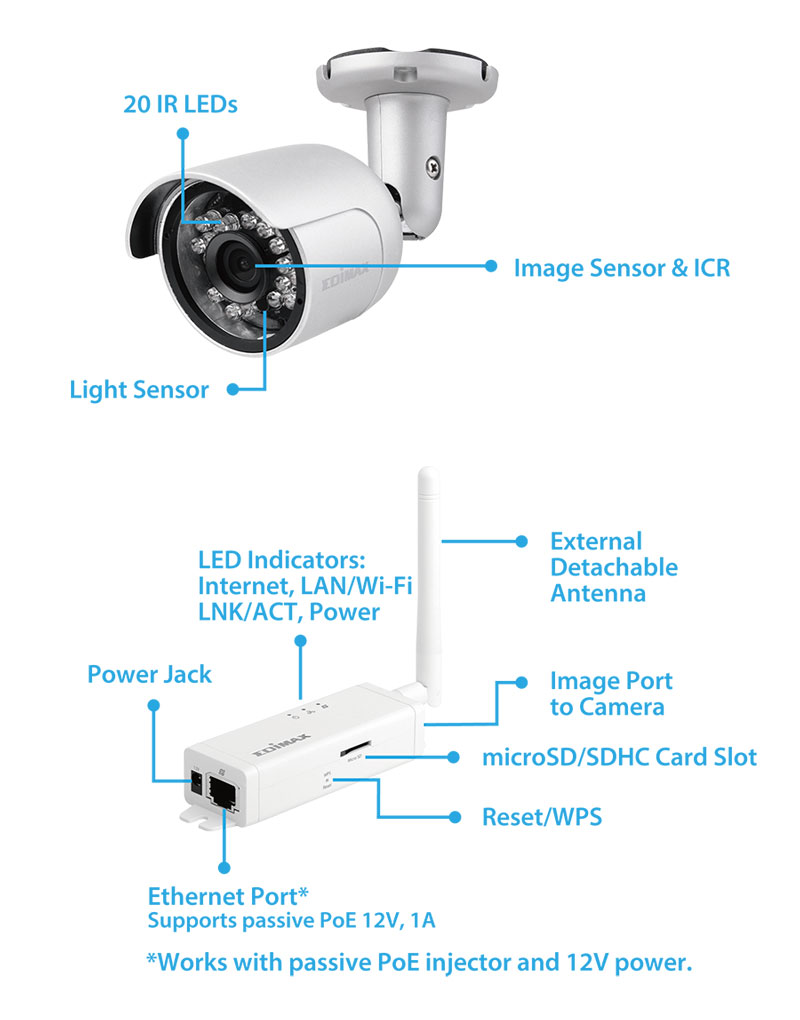

HARDWARE INTERFACE
Specifications
FUNCTIONS |
MANAGEMENT |
INTERFACE |
Easy remote monitoring via iPhone, iPad, Android, PC &
Mac |
EdiView Finder (Windows/Mac) |
Ethernet (RJ-45) port, supports passive PoE
injector |
108 degrees diagonal viewing angle |
16-channel viewer |
Power jack |
Supports dynamic DNS service |
Web management interface |
Reset/WPS button |
IR filter embedded |
Firmware upgradable |
Detachable external antenna |
Motion detection recording and alerts to microSD/SDHC card, email and
FTP |
iPhone & iPad viewer app |
microSD/SDHC card slot |
microSD/SDHC card slot for local storage |
Android viewer app |
Light sensor |
|
|
IR LEDs: 20 |
|
|
LED indicators: Internet, LAN/Wi-Fi LINK/ACT,
Power |
VIDEO |
VIDEO SETTINGS |
SUPPORTED PROTOCOLS |
High-speed H.264 & MJPEG video compression |
Resolution: HD (1280 x 720), 640 x 360, 320 x 176 |
IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP,
ARP, DNS, PPPoE |
1280 x 720 up to 30 fps |
Frame rate: 5, 10, 15, 20, 25 or 30 fps |
640 x 360 up to 30 fps |
|
320 x 176 up to 30 fps |
|
STANDARDS |
RF OUTPUT POWER |
IR LEDs |
Fast Ethernet IEEE 802.3/802.3u |
11b: 16~18dBm |
IR LEDs for night illumination up to 15 meters (7 meters for clear
image) |
Wireless IEEE 802.11b/g/n |
11g: 14~16dBm |
|
11n: 11~13dBm |
MEMORY |
OPERATING CONDITIONS |
POWER |
8MB flash |
Outdoor camrea: -20 Degree~50 Degree Celsius |
12V DC x 1A |
128MB SDRAM |
Indoor main unit: 0 Degree~40 Degree Celsius |
|
Humidity: 20-80%RH (non-condensing) |
DIMENSIONS |
DIMENSIONS / WEIGHT |
CERTIFICATIONS |
Outdoor camera: 63.5 x 63.5 x 147.8 mm |
Outdoor camera: 330g |
FCC, CE |
Indoor main unit: 105 x 30.5 x 21 mm |
Indoor main unit:
45g |
|
|
|
|
09/11
|
Edimax IC-5160GC Smart Full HD Cloud Garage Camera 180 Degree View w. Door Controller - 3MP, 1/3" CMOS Sensor, 1.30mm Lens(F2.5), 4x Digital Zoom, Built-In Microphone, H.264, M-JPEGOverview
Features
- Real-time monitoring and control of garage door
- 180° panoramic view without limitations and blind spots
- Native de-warping for easy monitoring and playback
- Smart reminders with geo-fencing
- Multi-area motion & sound detection
- Plug-n-View for 24/7 remote monitoring
- Push notifications with video alerts
- 1920 x 1080p Full HD video quality
- Flexible storage options: supports 64GB microSD/NAS/Cloud
- ePTZ: digital pan, tilt & zoom
Overview
The Edimax IC-5160GC is a cloud camera designed for garages that can connect
to a garage door motor to open and close the door. Theres a built-in smart
geo-fencing feature that works with Google Maps and reminds you of monitoring
your garage door open or close. Modern day home security thats always connected,
alert & available on your smartphone.

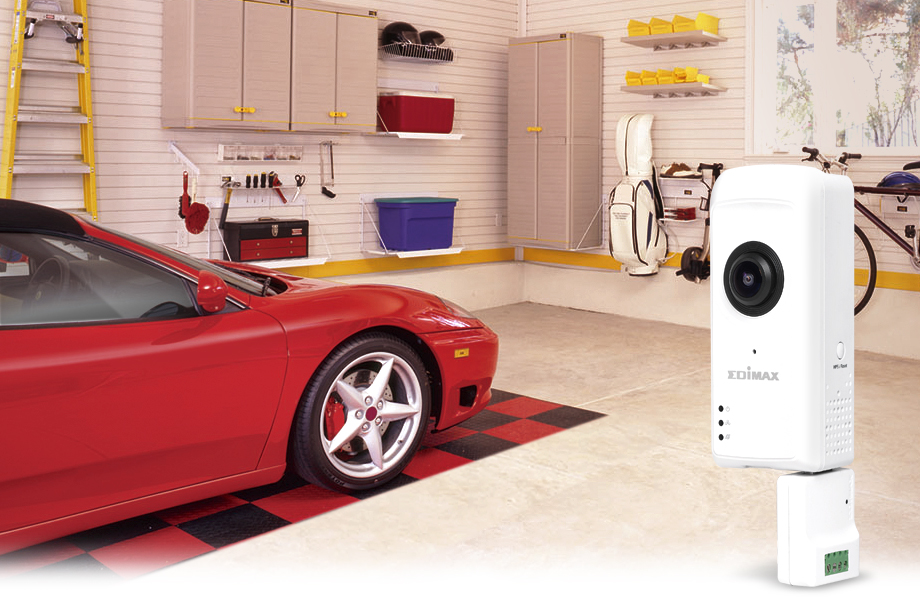

Make Your Garage Safer
Secure Your Garage and Property
IC-5160GC is a cloud camera designed for garage security that can control the
garage door remotely and know whats happening in garage when you are on the
go.
With IC-5160GC, you can see what kids, pets, the elders are doing from your
smartphone, and avoid anything unexpected or accident happens. Always keep an
eye on your loved ones and secure the property in garage.

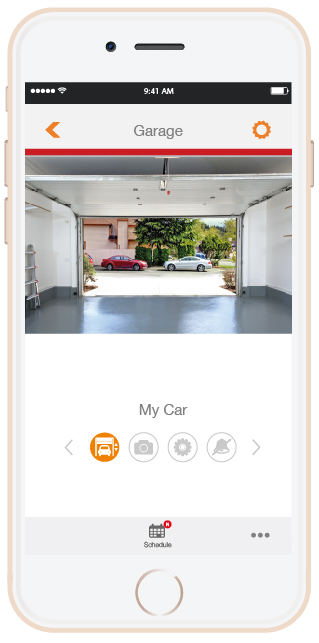

A Smartphone Becomes a Door Controller
Most of people daily use garage door as main entrance. To prevent burglars
from breaking into the house, it is so important to make sure the garage door
open or close when you are away.
IC-5160GC lets you no waste of time to drive back if you not sure closed the
garage door after leaving home. Just remotely control the garage door with your
smartphone from anywhere and offer you fully peace-of-mind and no distractions
on vacation or business trip.
Compatible With Up To 2 Garage Doors
No need to buy another garage opener even if you own 2 garages. IC-5160GC is
compatible with up to 2 garages that helps you control garage doors at the same
time on one app with your smartphone.

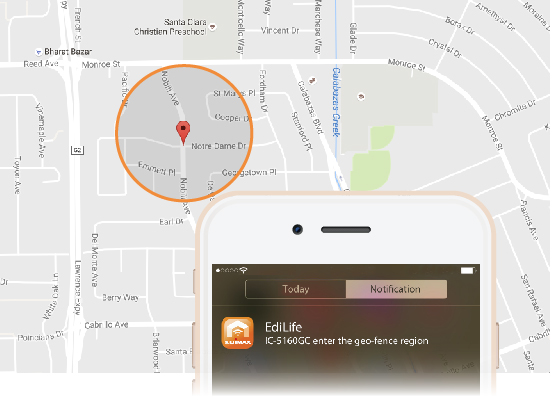

Geo-Fencing
The built-in geo-fencing feature that works with Google Maps will know you
how far away from home and sent location notification to the smartphone.
Friendly remind you of checking the garage door open or close for home
security.

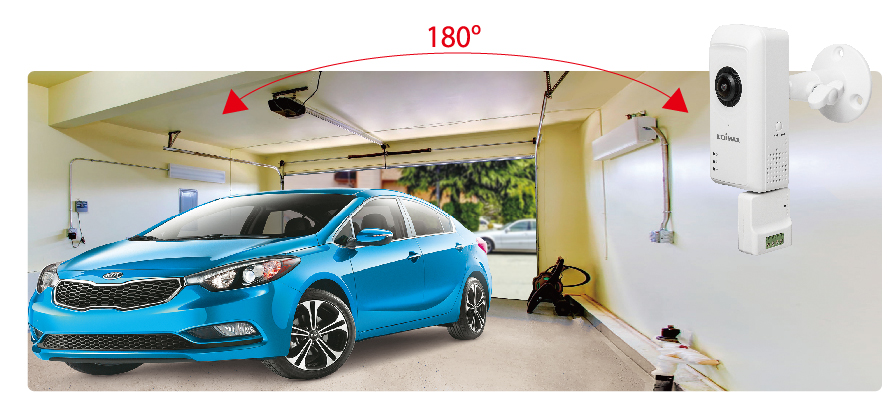

180° Panoramic View
IC-5160GC provides a 180-degree panoramic view for an excellent
field-of-vision across an entire garage, without limitations and blind spots. It
also can be focused on areas in detail with high quality video streaming.
Clearly see your loved one – kids, pets or the elder - in every moment to offer
you a great peace-of-mind.
Smart EdiLife
IC-5160GC cloud garage camera works with the free EdiLife app enables to
create virtual keys to be a controller. You can use your samrtphone as a garage
opener. In addition, EdiLife app adds other values for you, such as receive push
notifications, view the real-time video and the event log, and more. Now
available for Android and iOS.
Control
the garage door open and close
Receive
video alerts or push notification while detecting motion
Listen
to exterior sounds
Screenshot
video image while viewing
Setup
for connecting IC-5160GC
Edimax Cloud
Wherever there is internet, you can always connect with IC-5160GC from your
smartphone, thanks to Edimax cloud service. It is no problem where you are, just
check out your garage environment anytime as you want.

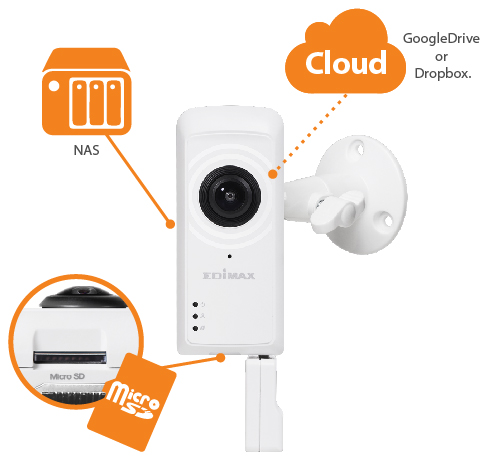

Flexible Storage Options
Recordings of IC-5160GC can be directly saved on mircoSD, SDHC, NAS, Google
Dirve or Dropbox. Flexible options for you to save videos on the cloud or local
storages.

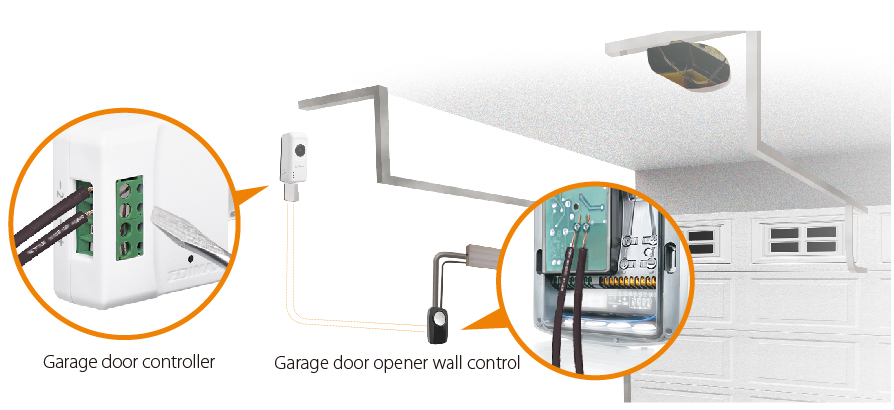

Easy to Install and Use
A few steps to complete the connection between IC-5160GC and garage motor for
easier setup and trouble-free operation in minutes.

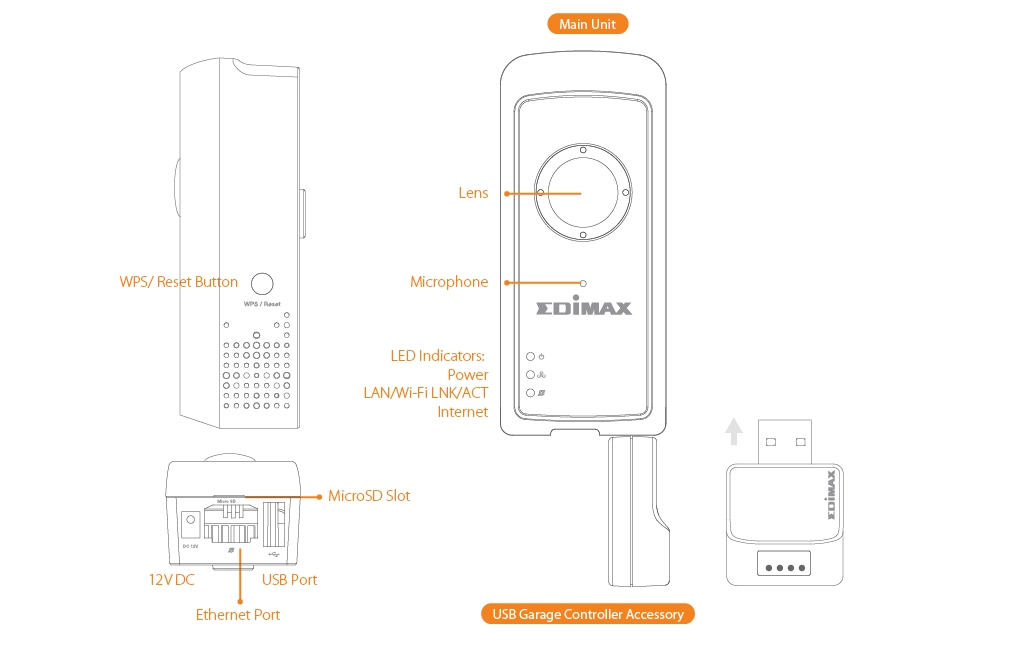

IC-5160GC Interface Diagram
Specifications
IC-5160GC Smart Full HD Wi-Fi Cloud Camera
with Garage Door Controller |
|
Dimensions |
131.57 mm(H) x 40.8mm(W) x 39.32mm(D) |
Camera |
Min Illumination: 1.0 Lux |
|
Sensor: 1/3" CMOS, 3M pixels |
|
Lens: 1.30mm / F2.5 |
|
Viewing Angle: Panoramic 180 degrees (H), 142 degrees (V) & 206
degrees (D) |
|
Zoom: 4x Digital |
Connectivity |
IEEE 802.3/802.3u |
|
IEEE 802.11 b/g/n , 1 internal Wi-Fi antenna |
Video |
H.264 & M-JPEG dual coded video compression |
|
Max Resolution: |
|
1920*1080 1080P (H.264) |
|
1280*720 720P (M-JPEG) |
|
Frame rate: 30fps (1080P/720P/VGA/QVGA) |
Audio |
Built-in microphone |
Management |
EdiLife: free mobile app for iPhone, iPad &
Android |
|
EdiView Finder: web management interface fro
Windows/Mac |
|
16-channel viewer |
|
Firmware upgradable |
Features |
Motion & sound detection trigger recording and alerts to
microSD/SDHC card, email and FTP |
|
Supports 64G microSD/SDHC card slot for local
storage |
|
Extend free cloud storage to personal accounts or other 3rd party
storage options |
Power |
Camera: 12V DC/1A |
Operating Conditions |
0-40 DegreeC |
|
|
|
Previous Page
|
Next Page
|
|
