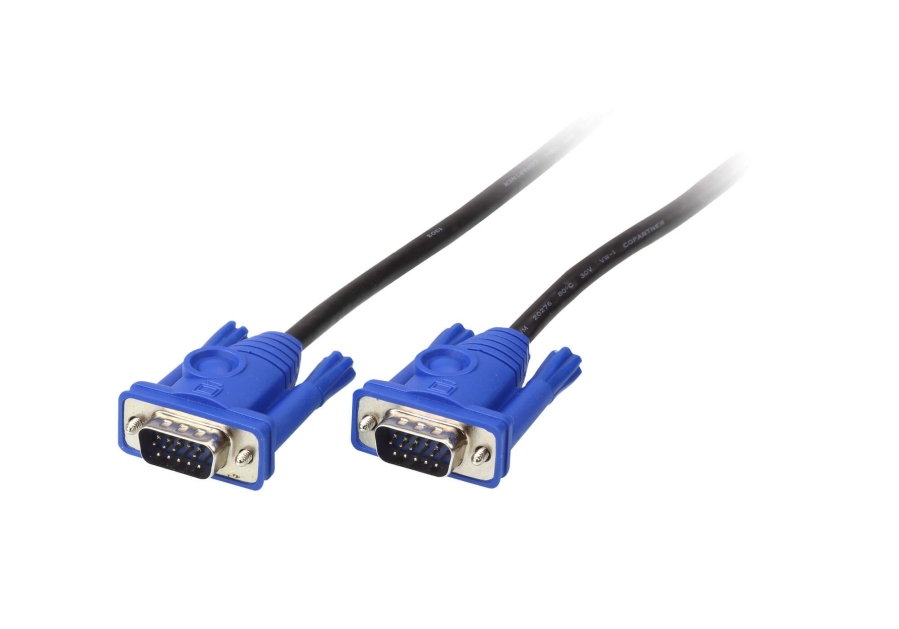

ATEN VGA Cable - 15m

Product May Vary From Image
Part No:
448649
Brand:
Manuf No:
2L-2515

2L2515
Usually Ships:
No Longer Available   More info

Ship Weight:
1.1 KG  Details
Product Description

Aten 2L-2515 15M VGA Cable



Overview

  • Optimized for analog signal transmission
  • VGA cable with 15-pin male input and output
  • Bend Radius: 60*
  • Outer shielded material: Al Mylar tape

The VGA Cable is designed to provide a high quality VGA connection, ideally suited for high resolution applications up to 1920 x 1200. This durably constructed VGA video cable eliminates the picture ghosting and fuzzy images, guaranteeing users the ultimate A/V experiences.

Package Contents

  • 1x 2L-2515 15M VGA Cable

Features

  • Optimized for analog signal transmission
  • VGA cable with 15-pin male input and output
  • Bend Radius: 60*
  • Outer shielded material: Al Mylar tape
  • Flame Test UL 758, CSA C22.2 No.210 compliant
  • Compatible with ATEN VGA products

Note:* Swings 3000 times between angles of +/- 60 degrees, at a frequency of 40 times per minute

Specifications

Conductor

Material

Tinned Copper

Conductor Diameter

30 AWG

Jacketed

Material

Jacket: PVC

Shielding: AL-Mylar

Connectors

Video

HDB-15 Male

HDB-15 Male

Cable Length

15m

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


Product Warranty


12 Month Return To Base
