Ideal entry level, general purpose soldering iron for students and enthusiasts.

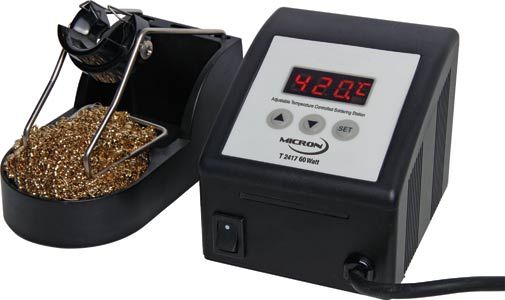

An electronic temperature controlled soldering station, designed to
meet the needs of production environments. It features a slender ‘pencil
design’ iron handle with comfortable rubberised grip, connected with a
burn-resistant rubber lead. Featuring key pad temperature control from
150°C to 480°C, this soldering station eliminates the need for changing
tips to perform different soldering tasks. When set, the iron will
maintain tip temperature to ±5°C. RoHS compliant.
Suitable for use with Mini-Wave tips: These fine concave
tips allow hand flow soldering of surface mount devices (SMD) such as
chip caps, resistors, LEDs, SOIC packages and PLCC chips.
Features
- Designed for RoHS lead free soldering
- LED display
- Simple key operation
- Burn proof iron lead
- Free standing iron holder with tip cleaner
- Temperature adjustable
- Temperature ‘offset’ for accurate calibration
- Temperature lockout
- Suitable for ROHS compliant soldering
- ESD safe and spike free circuitry
- Grounding socket
- High insulation ceramic heating element for rapid heat-up and instant recovery
- Slimline & lightweight hand piece.
IncludesSoldering Station
Iron Stand
Dry Tip Cleaner
0.8mm Tip
Specifications:
- Voltage input: 220 - 240V ac
- Heater: 32V ac ceramic element
- Heater insulation: > 100MW
- Nominal power: 60W
- Temp. range: 150 - 480°C
- Temp. correction range: +99° to -99°C
- Heat up time: 60s
- Leakage voltage: < 0.4mV
- Weight: 1.8kg
- Tip to ground resistance: < 0.1O
