Redback A4586 Paging Console to suit A 4585

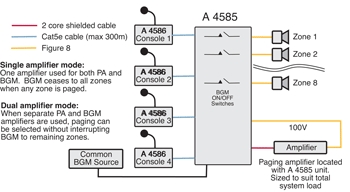

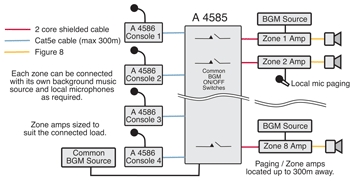

This paging microphone system can accommodate up to 8 mic consoles on 4 individual circuits, maximum of 2 consoles per circuit. Each console is capable of operating 16 zones. A LED indicator per zone switch illuminates when selected. Cancelling a selected zone can be achieved by pressing the zone switch again, via the cancel switch or automatically if not used after approximately 10 seconds. A busy indicator LED is also fitted to all microphone consoles to indicate when the system is in use. Console 1 can be configured for priority operation over consoles 2 - 8. PA zones can be custom labelled via USB keyboard and displayed on the colour LCD.





A 4586 Connections
Keyboard Connection: USB Type A
Power: Powered by Cat5e (from main unit) or 2.1mm DC jack input
