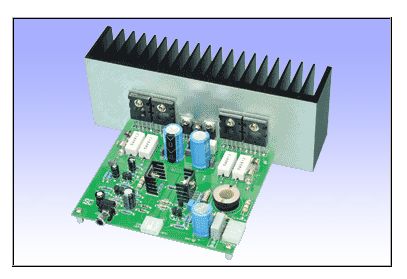

Generic K5154 Ultra LD Mk.3 Class AB Audio Amplifier Kit - 135W



An improved version of the K 5151 Mk. 2 edition. It features less than half as much distortion at frequencies of 2kHz or above. It also boasts much improved thermal stability & flatter frequency response. Produces incredibly low levels of distortion even at high power outputs. The class AB design runs much cooler than genuine class A amplifiers, yet performance has not been sacrificed. It produces 135W into 8 or 200W into 4 with distortion levels around 0.006%. Heatsink is not supplied, we suggest the H 0545 diecast heatsink for a professional finish when mounted in a case.



Performance:

SNR: 123dB (un-weighted)
Power: 135W RMS into 8 O
Distortion: < 0.004% from 20Hz to 20kHz. 0.0006% typical
Frequency response: +0, -0.3 (8O), 10Hz - 20KHzal
