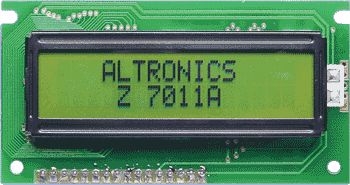

NoBrand Alphanumeric LCD Display - 16x2 Wide Angle, Backlight

[Large image available]

Product May Vary From Image

Part No:

118007

Brand:

NoBrand

Manuf No:

Z7011A

Usually Ships:

No Longer Available More info

Ship Weight:

0.0355 KG Details

Product Description

This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory, making it easy to drive.

Specifications:

Module Size 84 x 44 x 8.8mm
Viewing Area 65 x 16mm
Character Size 2.96 x 5.56mm
Contrast Ratio O = 10
Number of Characters 16 Characters by 2 lines
Supply Voltage 5V DC
Power Supply Current 132mA Typical
Viewing Angle: STN wide angle bottom view
Duty 1/16

Product Warranty

1 Year Return to Base
