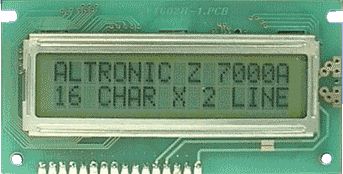

NoBrand Alphanumeric LCD Display - 16x2 Wide Angle

[Large image available]

Product May Vary From Image

Part No:

118006

Brand:

NoBrand

Manuf No:

Z7000A

Usually Ships:

No Longer Available More info

Ship Weight:

0.028 KG Details

Product Description

This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory, making it easy to drive.

Specifications:

Module Size 84 x 44 x 8.8mm
Viewing Area 66 x 16mm
Character Size 2.96 x 5.56mm
Contrast Ratio O = 10
Number of Characters 16 Characters by 2 lines
Supply Voltage 5V DC
Power Supply Current 1mA Typical
Viewing Angle Between 50° -80° Longitudinal & 60° - 120° Lateral
Duty 1/16
Weight 28g

Interface Pinouts

1 0V (Vss)
2 5V (Vdd)
3 Contrast Adjust (Vo)
4 Register Select (RS)
5 Read / Write (R/W)
6 Enable Signal (E)
7 Data Bit 0 (DB0)
8 Data Bit 1(DB1)
9 Data Bit 2(DB1)
10 Data Bit 3(DB3)
11 Data Bit 4(DB4)
12 Data Bit 5(DB5)
13 Data Bit 6(DB6)
14 Data Bit 7(DB7)
15 LED Anode (A)
16 LED Cathode (C)

Product Warranty

1 Year Return to Base
