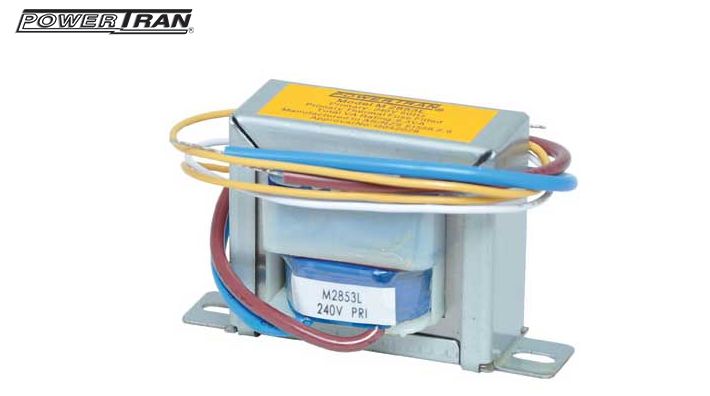

Powertran 6.3VA EI Core Transformer - 12.6V, Class E Insulation

[Large image available]

Product May Vary From Image

Part No:

115912

Brand:

Powertran Web Site

Manuf No:

M2853L

Usually Ships:

No Longer Available More info

Ship Weight:

0.315 KG Details

Product Description

Primary and secondary fitted with 200mm fly leads.

Specifications

?Primary voltage: 240V AC
Total VA rating: 6.3VA
Insulation: Class E (120°C)
Magnetising current: <45mA
Temperature rise: <65°C
Regulation: ˜13%
Recommended AC fuse: 100mA
Weight: ˜315g
Primary connection: 200mm fly leads
Secondary connection: 200mm fly leads
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q

Secondary Voltages Available: Voltage : 6.3V, 12.6V / Current : 300mA

Note: Must be used with a standard 100mA external fuse.

Product Warranty

1 Year Return to Base
