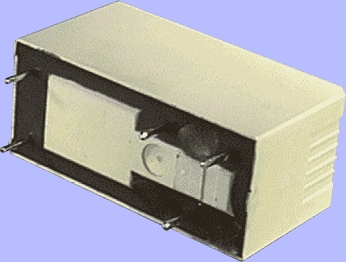

NoBrand Relay - 12V DC Coil, 12A, SPDT, PCB Mount, Silver Alloy Contacts, Low Profile

[More images available]

Product May Vary From Image

Part No:

115361

Brand:

NoBrand

Manuf No:

S4260

Usually Ships:

No Longer Available More info

Ship Weight:

0.013 KG Details

Product Description

Non-sealed type, suitable for flow soldering

Specifications:

Max voltage: 250V AC, 110V DC
Max current: 12A
Max VA (Watts): 3000VA (360W)
Contact material: Silver Alloy
Coil resistance: 360Ω
Max coil power: 400mw
Insulation resistance: >100MΩ@ 500V DC
Dielectric strength (for 1 min):
1000V AC between open contacts
5000V AC between coil & contact
Electrical life: 100,000 operations
Mechanical life: 10 million operations
Dimensions: ˜29W x 12.5L x 15.5H mm

Product Warranty

1 Year Return to Base
