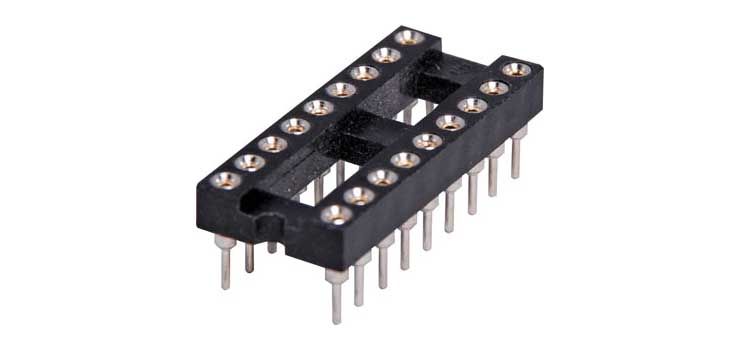

Oupiin 18 Pin DIL Machined Pin IC Socket - 7.62 (0.3") - 26 Units

[Large image available]

Product May Vary From Image

Part No:

109129

Brand:

Oupiin Web Site

Manuf No:

P0536

Usually Ships:

No Longer Available More info

Ship Weight:

0.05 KG Details

Product Description

** Minimum purchase of 26 units **

Specifications:

Contact Resistance: 30M Ohms Max @ DC 100mA
Insulation Resistance: 1000M Ohms Min @ DC 250V
Current Rating: 1 Amp
Dielectric Voltage: AC 500V for 1 Minute
Operating Temp: -55° to 105° C
Gold Plated Beryllium Copper Contacts

Dimensions:

A: 22.84
B: 20.32
C: 10.14
D: 7.62

Product Warranty

1 Year Return to Base
