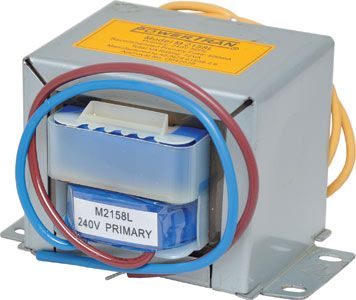

Powertran 72VA EI Core Transformer - 24V, Class E Insulation

[Large image available]

Product May Vary From Image

Part No:

108703

Brand:

Powertran Web Site

Manuf No:

M2158L

Usually Ships:

No Longer Available More info

Ship Weight:

1.4 KG Details

Product Description

Primary fitted with 200mm fly leads. Secondary fitted with fly leads.

Specifications

Primary voltage: 240V AC
Total VA rating: 72VA
Insulation: Class E (120°C)
Magnetising current: <85mA
Temperature rise: <65°C
Regulation: ˜10%
Recommended primary AC fuse: 500mA
Weight: ˜1.4kg
Primary connection: 200mm fly leads
Secondary connection: Solder tags
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.

Product Warranty

1 Year Return to Base
