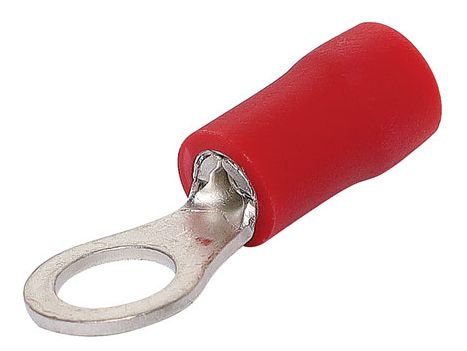

NoBrand Ring Terminal - Red, 5mm, Pack of 1000

[Large image available]

Product May Vary From Image

Part No:

106785

Brand:

NoBrand

Manuf No:

H2043B

Usually Ships:

No Longer Available More info

Ship Weight:

1.044 KG Details

Product Description

Ring type with double crimp. Pack of 1000.

What is a double crimp?
A double crimp features two crimping surfaces. Firstly, an inner crimping ring which is directly attached to the spade lug, this crimps to the exposed cable core. Secondly the outer crimping ring secures both the cable core and outer sheath to the crimp terminal. This results is a vastly more reliable connection.

The diagram below shows how the outer crimping ring surrounds the inner ring, ensuring a quality connection every time.

Note: Crimp shown is an example only.

Wire:
0.75 - 1.0mmØ
Stud:
5mm
Max. voltage:
600V

Product Warranty

1 Year Return to Base
