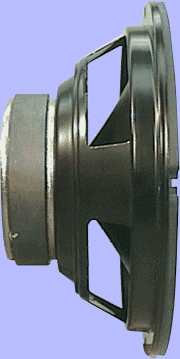

NoBrand 30W Polypropylene Hi-Fi Speaker Driver - 6.5" (165mm)

[More images available]

Product May Vary From Image

Part No:

105835

Brand:

NoBrand

Manuf No:

C3055

Usually Ships:

No Longer Available More info

Ship Weight:

1 KG Details

Product Description

Specifications:

Rated Power Input: 30W
Max Input Power: 50W
Impedance: 8Ω
Frequency Resp: 40Hz-4kHz
Resonant Frequency: 40Hz
Sensitivity (1W @ 1m): 87dB
Voice Coil Diameter: 28mm
QMS: 3.24
QES: 0.50
QTS: 0.43
VAS: 27L
Nett Weight: 740g
Magnet Weight: 283g
Overall Diameter: 165mm
Cutout Diameter: 148mm
Mounting Depth: 64mm

Suggested Vented Enclosure
(Tuned to 36Hz)
Volume: 36L
Port: 50mmø x 64mmL

Suggested Sealed Enclosure
Volume: 16

Product Warranty

1 Year Return to Base
