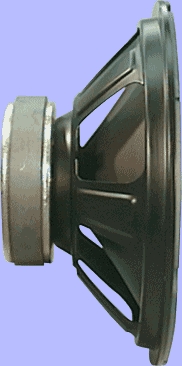

NoBrand 60W Woofer Polypropylene Speaker - 250mm 10", 8 Ohm

[More images available]

Product May Vary From Image

Part No:

105830

Brand:

NoBrand

Manuf No:

C3065

Usually Ships:

No Longer Available More info

Ship Weight:

2.5 KG Details

Product Description

Specifications:

Rated Power Input: 60W
Max Input Power: 100W
Impedance: 8Ω
Frequency Resp: 28Hz-4kHz
Resonant Frequency: 28Hz
Sensitivity (1W @ 1m): 92dB
Voice Coil Diameter: 32mm
QMS: 3.40
QES: 0.30
QTS: 0.28
VAS: 173L
Nett Weight: 2.3kg
Magnet Weight: 848g
Cutout Diameter: 234mm
Mounting Depth: 101mm

Suggested Vented Enclosure
(Tuned to 48Hz)
Volume: 22L
Port: 50mmø x 56mmL

Suggested Sealed Enclosure
Volume: 35L

Product Warranty

1 Year Return to Base
