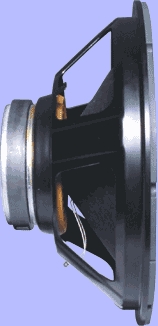

NoBrand 150W Woofer Speaker - 15", PECC

[More images available]

Product May Vary From Image

Part No:

105823

Brand:

NoBrand

Manuf No:

C3033

Usually Ships:

No Longer Available More info

Ship Weight:

5 KG Details

Product Description

This series of loudspeakers feature rubber surrounds and high rigidity, fibre impregnated poly emulsion coated cones (PECC).

All voice coils are wound on aluminium formers, and magnet pole pieces are vented for heat dissipation. Bump back plates are employed to prevent voice coil over-excursion.

These drivers are suited to bass oriented enclosures, such as home theatre or car audio subwoofer enclosures.

Specifications:

Rated Input Power: 100W RMS
Max Input Power: 150W
Impedance (300Hz): 8Ω
Frequency Resp: 28Hz-1.5kHz
Resonant Frequency: 28Hz
Sensitivity 1W @ 1m: 94dB
Voice Coil Diameter: 49.5mm
QMS: 4.29
QES: 0.44
QTS: 0.4
VAS: 314.6L
Nett Weight: 5kg
Magnet Weight: 1.4kg
Cutout Diameter: 355mm
Mounting Depth: 160mm

Suggested Vented Enclosure
(Tuned to 45Hz)
Volume: 100L
Port: 2x 100mmø x 100mmL

Suggested Sealed Enclosure
Volume: 80L

Product Warranty

1 Year Return to Base
