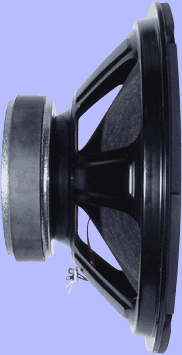

NoBrand 120W Woofer Speaker - 10" (250mm), PECC

[More images available]

Product May Vary From Image

Part No:

105821

Brand:

NoBrand

Manuf No:

C3026

Usually Ships:

No Longer Available More info

Ship Weight:

2.5 KG Details

Product Description

This series of loudspeakers feature rubber surrounds and high rigidity, fibre impregnated poly emulsion coated cones (PECC).

All voice coils are wound on aluminium formers, and magnet pole pieces are vented for heat dissipation. Bump back plates are employed to prevent voice coil over-excursion.

Manufactured exclusively for Altronics to our specifications, these drivers are suited to bass oriented enclosures, such as home theatre or car audio subwoofer enclosures.

Specifications

Rated Input Power: 60W RMS

Max Input Power: 120W

Impedance (300Hz): 8O

Frequency Resp: 28Hz-2kHz

Resonant Frequency: 28Hz

Sensitivity 1W @ 1m: 93dB

Voice Coil Diameter: 35.5mm

QMS: 2.83

QES: 0.27

QTS: 0.25

VAS: 135L

Nett Weight: 2.4kg

Magnet Weight: 848g

Cutout Diameter: 233mm

Mounting Depth: 122mm

Suggested Vented Enclosure

(Tuned to 30Hz)

Volume: 40L

Port: 70mmø x 100mmL

Suggested Sealed Enclosure

Volume: 30L

Product Warranty

1 Year Return to Base
