Great for bars, lecture theatres, boardrooms, cafes, function areas, pubs, boutiques etc. System comprises of one active speaker with inbuilt stereo amplifier and one passive speaker which is powered from the active speaker.

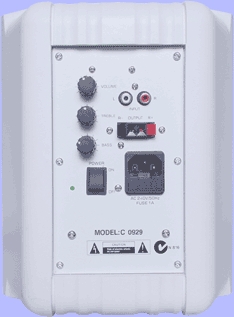

These high power music speakers feature exceptional sound quality for professional sound reinforcement. Available with 165mm or 200mm bass drivers they feature a stylish contoured profile and quick mounting bracket which virtually disappears once mounted. An in-built amplifier allows easy integration into existing systems with only line level signal required for operation. The ported bass reflex enclosure produces outstanding sound reproduction ideal for areas requiring high quality sound reinforcement. Rear mounted
volume, bass and treble controls allow easy adjustment, even after installation. RCA’s provide easy connection to existing audio sources. Mains power for the amplifier is connected via IEC socket on the rear panel. Each speaker can be switched off when not in use.
Features:
|
Aluminium grill and bracket
In-built amplifier for easy integration
Easy to install, quick adjust bracket
Outstanding sound reproduction
Great for bars, cafes, pubs, boutiques etc.
|
Specifications:
|
Rated power: 50W Max
SPL 1W @ 1m: 85dB
Freq. response: 70Hz- 20kHz
Dimensions (mm): 215W x 288L x 242D
Weight:
Passive: 4kg
Active: 5kg
|
Connection Diagram:
|
|
