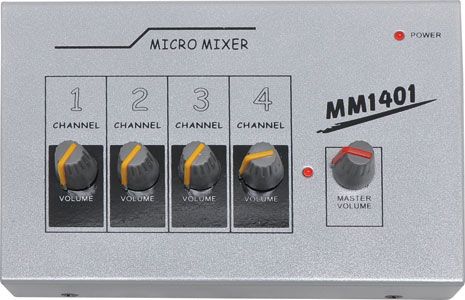

Lumisonix 4 Input Microphone Mixer, 9V DC Input

[More images available]

Product May Vary From Image

Part No:

104365

Brand:

Lumisonix

Manuf No:

A2620

Usually Ships:

No Longer Available More info

Ship Weight:

0.446 KG Details

Product Description

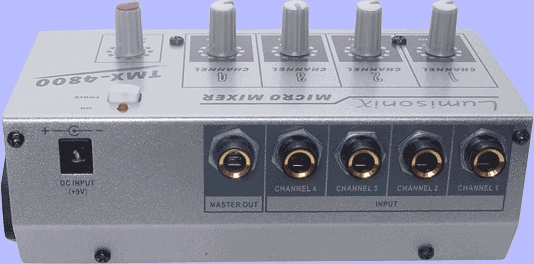

This compact mono mixer allows 4 channels of audio to be mixed via 6.35mm unbalanced connections. It features 4 x 6.35mm unbalanced inputs, 1 x 6.35mm balanced master output, master volume control and handy battery or plugpack operation.

Features & Specifications:

4 x unbalanced 6.35mm inputs
1 x balanced 6.35mm outputs
24dB total gain
Frequency response: 10-100KHz
THD: less than 0.05%
Signal to noise ratio: >80dB
Dimensions: 152 x 84 x 52mm
Input impedance: 30K Ohm
Output impedance: 600/5K Ohm unbalanced, 1.2K/10K Ohm balanced
Max balanced output level: +16dB
9V battery power (20 hour battery life)
9V DC input

Product Warranty

1 Year Return to Base
