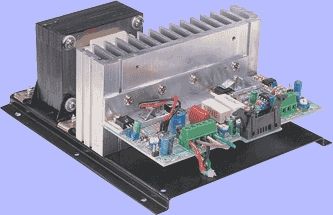

Redback 120W Line Power Amplifier Module - 8A, 100V Line Audio Output

[Large image available]

Product May Vary From Image

Part No:

104305

Brand:

Redback

Manuf No:

A1930A

Usually Ships:

No Longer Available More info

Ship Weight:

3.7 KG Details

Product Description

Designed for use in emergency evacuation systems and powered by an external 24-28V DC source. Input is line level audio and output is 100V line. Features include short circuit, overload, thermal cutout protection and steel chassis construction enabling the modules to be direct mounted in fire alarm or emergency evacuation panels.

Features:

• Powered by 24-28V DC • 100V line audio output • Line level audio input • Short circuit,
overload and thermal cutout protection • Bolt-in chassis construction • Australian made

Features:

• Powered by 24V DC
• 100V line audio output
• Line level audio input
• Short circuit, overload and thermal cutout protection
• Bolt-in chassis construction
• Australian designed and assembled

Specifications:

Output Power: 120W RMS
Current Draw: 8A at full load (220mA quiescent)
Frequency Response: 40Hz - 13kHz
Distortion: <0.6%
SNR: -91dB
Sensitivity: 600mV RMS
Protection: 7.5A
Dimensions: 210W x 170D x 85H

* Specifications subject to change without notice.

Product Warranty

1 Year Return to Base
