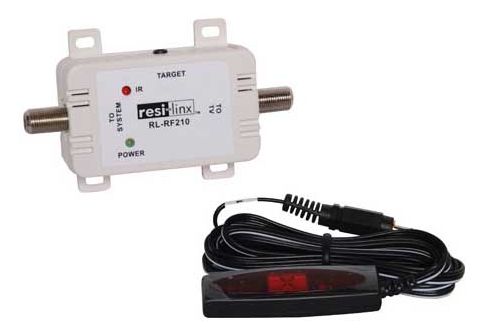

Installed next to the TV screen, this device connects in-line between the TV screen and the A1058 splitter and enables full remote control of the connected AV sources through the A1051 via existing coaxial cable.
Features:
|
• Sleek unobtrusive Flat IR Target for use with Vcomm’s RF IR Video Distribution System with IR modulator / video hub emitters.
• Flexible flat cord allows for ease of placement of target.
• Target plugs into compact in-line coaxial connector box using 3.5mm mini-jack
• Light-weight Connector box has mounting brackets for ease of installation
• To facilitate placement, adhesive backing is also included for both target and connector box.
• Receives IR commands from remote controls and send the signals through the Video Hub and emitters to control the AV device at a remote location
• Built-in LED to show acknowledgement of IR commands
• Rejects interference from plasma displays that enters the IR signal line
• Rejects interference from direct sunlight and fluorescent tube lights for accurate IR signal reception
• Powered remotely by modulator (both connector box & target)
|
Specifications:
|
Max Target reception distance: Up to 6m
Operating voltage: 5V
Cable requirement: Coaxial
Connector type: F
IR frequency: 30 – 100kHz
RF frequency: 50MHz~900MHz
Size (mm) connector box: 70 x 40 x 23
Size (mm) flat target: 57 x 13 x 8
|
