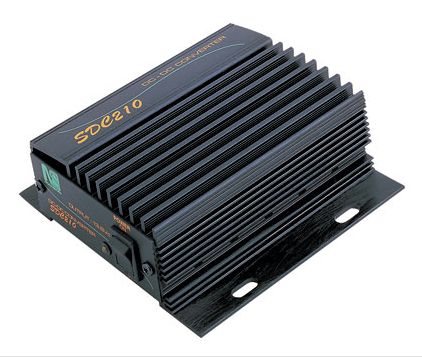

NoBrand 8A 24 VDC To 13.8V DC Converter

[Large image available]

Product May Vary From Image

Part No:

126347

Brand:

NoBrand

Manuf No:

M8162

Usually Ships:

No Longer Available More info

Ship Weight:

0.796 KG Details

Product Description

Converts 24V DC to 13.8V DC for use with stereos, CB radios, two ways etc. Suitable for vehicles fitted with 24V electrical systems, eg. trucks, boats, tractors etc.

Features

• Overload protection
• Over-current protection
• Rated at 8 amps continuous, 10 amps peak
• On / Off power switch
• Fused
• Extremely compact and rugged
• Quality construction
• Efficiency > 88%

Specifications

Output Voltage: 13.8V DC
Current rating: 8A
Line Regulation: <15mV
Efficiency: >88%
Ripple: <12mV p-p
Dimensions: 140 x 50 x 125mm (L x H x W)

Product Warranty

1 Year Return to Base
