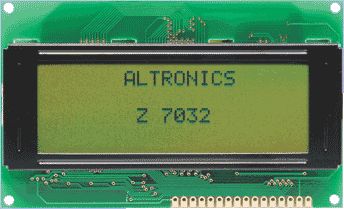

NoBrand Alphanumeric LCD Display - 20x4 Jumbo Version, LED Backlight

[Large image available]

Product May Vary From Image

Part No:

118011

Brand:

NoBrand

Manuf No:

Z7032

Usually Ships:

No Longer Available More info

Ship Weight:

0.09 KG Details

Product Description

Jumbo LCD module with 96 built-in characters plus 92 special and 8 custom characters. 20 character by 4 line screen.

Specifications

Module size: 98 x 60 x 12.7mm
Viewing area: 77 x 26mm
Character size: 2.96 x 5.56mm
Contrast ratio: f=20°, q=0°
Supply voltage: 5V DC
Power supply current: 283mA (with LED)
Viewing angle: STN wide angle bottom view
Duty: 1/16
Controller: KS0066
Application: General Purpose
Frame colour: Black
Backlight: LED yellow green

Product Warranty

1 Year Return to Base
