Specifically designed for applications requiring up to three microphone inputs, without compromising output power and overall performance. Each model features three inputs which can be configured for either microphone or line level operation. A 4375 and A 4385 conservatively deliver 125W and 250W RMS power respectively. Frequency response extends from 50Hz to 15kHz ±3dB at a total harmonic distortion (THD) of less than 0.5% @ 1kHz. Vox muting is provided on inputs one and two, which, when activated, automatically mutes the other inputs. Bass/treble controls and phantom powering capability enable unparalleled flexibility for a wide scope of applications such as factories, workshops, mine sites, sports clubs and office buildings. Operates from 240V AC mains or 24V DC permitting battery backup operation during mains power failure. Output can be 100V line, 70V line or low impedance (4 - 16O) loads. Thermal overload, overcurrent/load protection circuitry and fuses on both AC and DC provide excellent fault condition protection and robust performance. Tape output sockets are provided for recording purposes or feeding into additional power amplifiers.
Features:
|
• Multi-stage thermally cued fan cooling
• 2U 19" rack mount
• Tape record out terminals
• Optional alert, evac & chime tone generator (A 2073)
• 3 mic input and 4 auxiliary inputs
• Phantom powering available on all inputs
• Vox muting on inputs 1 & 2.
• Bass and treble tone controls
• Terminals for 100V line, 70V line and 4 - 16O loads
• 240V AC or 24V DC power operation
• Thermal & fuse overload protection
• Built in short circuit protection
• Australian designed & assembled
|
Specifications:
|
Power Output
A 4375: 125 watts RMS
A 4385: 250 watts RMS
Distortio: < 0.5% @ 1kHz
Signal to Noise Ratio: Typically 75dB below rated output. All inputs.
Frequency Response
Mic inputs: 50Hz - 10kHz, -3dB
Aux inputs: 60Hz - 15kHz, -3dB
Output line: 100V, 70V or 4 - 16O
Input Sensitivity
Mic inputs: 1.5mV balanced
Aux input 1: 300mV
Aux input 2-3: 500mV
Aux input 4: 500mV

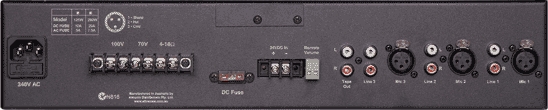

Output Connectors
Speakers:Screw terminals
Input Connectors
Mic Inputs: 3 pin XLR balanced
Aux inputs 1-3: RCA stereo socket
Aux input 4: 3.5mm stereo socket
Tape Out: RCA stereo socket
24V DC power: Screw terminals
240V AC power: IEC power connector
Remote volume: Screw terminals
Controls
Mic inputs: Volume
Aux inputs: Volume
Bass: ±10dB @ 100Hz
Treble: ±13dB @ 10kHz
Power: On/off switch
Indicators: Power, Overload
Power supply: 240V AC or 24V DC
Protection
A 4375 5A AC fuse and 10A DC fuse
A 4385: 7.5A AC fuse and 20A DC fuse
Weight/ Dimensions
A 4375: ˜9.5kg
A 4385: 15kg
Dimensions: ˜423W x 285D x 88H mm
Colour: Black
|
