An excellent replacement for traditional time lapse VCR’s. Accepts up to four camera inputs which can be individually recorded to the internal SATA hard drive (available separately). Composite connection to monitor is provided for viewing live video or reviewing recorded footage. Channels may be viewed in full screen or quad modes with switching and freeze image functionality in-built. Footage may be recorded in quad mode (100fps) or at full screen (25fps) from each camera (note: footage recorded in quad mode cannot be reverted to full screen). Software is provided for connecting the unit to your PC via USB. This allows you to monitor live video, access recorded footage and convert videos to AVI format for backup. Recording can be continuous, scheduled or triggered via motion detection.
Requires M 8938 power supply with P 8410C.
NOTE: UNIT IS NOT SUPPLIED WITH HARD DRIVE. ALL HARD DRIVES AVAILABLE SEPARATELY
• USB 2.0 output for file transfer to PC or external drive
• SATA Hard drive compatible
• NTSC / PAL switchable
• Real time display
• Programmable recording rates
• Records in quad or individual camera modes
• User friendly on screen menu system
• Security password
• Auto reboot after power loss
• Single HDD bay
• Advanced MPEG compression maximises use of storage space
• Fast 25fps live display rate (a total of 100fps in quad screen mode)
• High quality 720x576 live display resolution
• Recording rates, 320 x 136 @ 25fps per camera input, 640 x 272 in quad mode @ 100fps

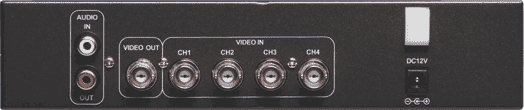

• BNC inputs
NOTE:
|
|
WE ARE UNABLE TO PROVIDE DETAILED TECHNICAL SUPPORT FOR THIS PRODUCT AS INSTALLATIONS VARY GREATLY IN CONFIGURATION. WE RECOMMEND OUR DVR'S BE INSTALLED BY A SECURITY PROFESSIONAL AS INSTALLATION CAN BE A COMPLEX PROCESS REQUIRING TECHNICAL KNOWLEDGE.
|
