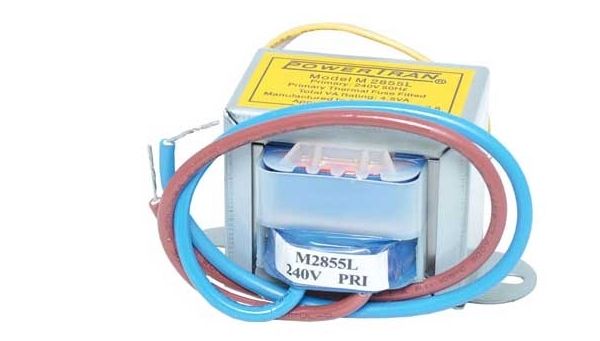

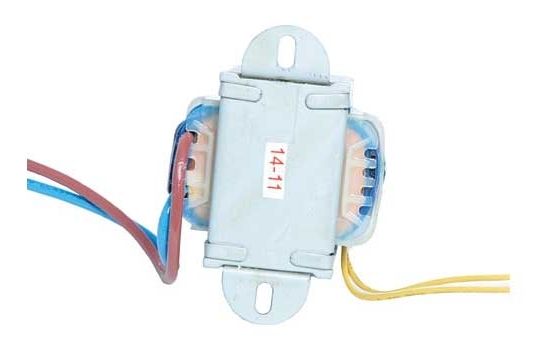

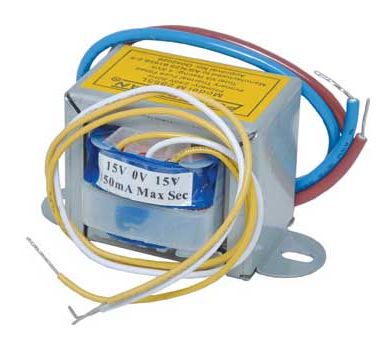

Powertran 4.5VA EI Core Transformer - 30V, Class E Insulation

[More images available]

Product May Vary From Image

Part No:

115909

Brand:

Powertran Web Site

Manuf No:

M2855L

Usually Ships:

No Longer Available More info

Ship Weight:

0.29 KG Details

Product Description

Primary and secondary fitted with 200mm fly leads.

Specifications

Primary voltage: 240V AC
Total VA rating: 4.5VA
Insulation: Class E (120°C)
Magnetising current: <45mA
Temperature rise: <65°C
Regulation: ˜15%
AC fuse: Not required (fitted internally)
Weight: ˜290g
Primary connection: 200mm fly leads
Secondary connection: 200mm fly leads
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q

Secondary Voltages Available: Voltage : 15V, 30V / Current : 150mA

Product Warranty

1 Year Return to Base
