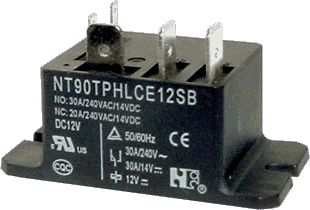

NoBrand Relay - 12V DC Coil, 30A, SPDT, Tag Connection, Silver Nickel Alloy Contacts

[Large image available]

Product May Vary From Image

Part No:

115375

Brand:

NoBrand

Manuf No:

S4211

Usually Ships:

No Longer Available More info

Ship Weight:

0.0385 KG Details

Product Description

Specifications:

Max voltage:250V AC
Max current:30A
Max VA (Watts):7200VA (1100W)
Contact material:Silver Nickel Alloy
Coil resistance:160Ω
Max coil power:2.5W
Insulation resistance:>1000MΩ @ 500V DC
Dielectric strength (for 1 min):
1500V AC between open contacts
2500V AC between coil & contact
Electrical life:100,000 operations
Mechanical life:1 million operations
Dimensions:˜50W x 27L x 20H mm
(excluding terminals)

Product Warranty

1 Year Return to Base
