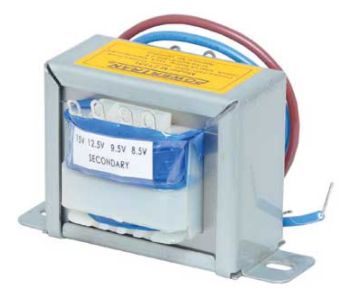

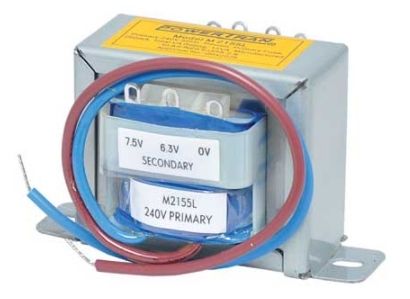

Powertran 15VA EI Core Transformer - 6.3V-15V, Class E Insulation

[More images available]

Product May Vary From Image

Part No:

108700

Brand:

Powertran Web Site

Manuf No:

M2155L

Usually Ships:

No Longer Available More info

Ship Weight:

0.555 KG Details

Product Description

Primary fitted with 200mm fly leads. Secondary taps have solder tags.

Specifications

Primary voltage: 240V AC
Total VA rating: 15VA
Insulation: Class E (120°C)
Magnetising current: <60mA
Temperature rise: <60°C
Regulation: ˜10%
Recommended primary AC fuse: 250mA
Weight: ˜555g
Primary connection: 200mm fly leads
Secondary connection: Solder tags
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q

Note: Must be used with a standard 250mA external fuse. All currents listed are AC

Product Warranty

1 Year Return to Base
