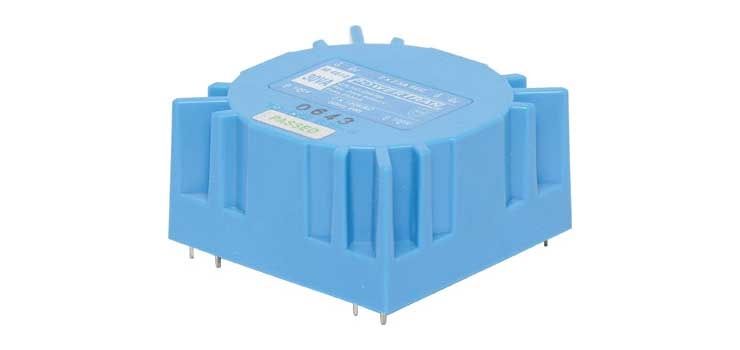

Powertran 30VA Potted Toroidal Transformer - 7.5+7.5V, Class A Insulation

[More images available]

Product May Vary From Image

Part No:

108653

Brand:

Powertran Web Site

Manuf No:

M4615

Usually Ships:

No Longer Available More info

Ship Weight:

0.45 KG Details

Product Description

Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for high performance, low noise circuits.

The transformer is potted in an epoxy compound within a plastic housing. Configured with 2 x 120V primaries and 2 identical secondaries which can be wired in either series or parallel. Being PCB mount reduces assembly time as the transformer simply solders to the PCB. For extra stability and mechanical reliability the transformer can be secured to the PCB with a self tapping screw.

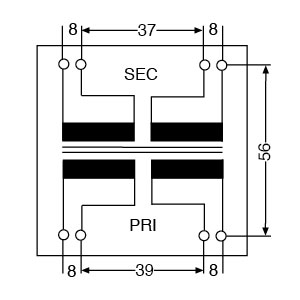

PCB Layout

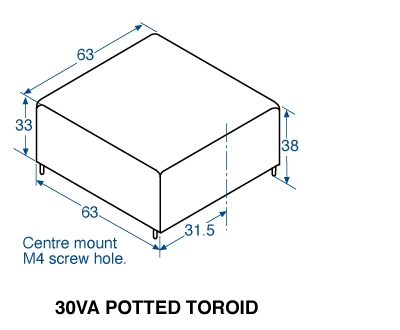

Dimensions

Primary voltage: 2 x 120V ac
Secondary Voltage: 7.5 + 7.5
Secondary Current: 4A Parallel, 2A Series
Total VA rating: 30VA
Insulation: Class A (105C)
Magnetising current: <30mA
Temperature rise: <65C
External ac fuse: 250mA
Regulation: 16%
Weight: 450g
PCB hole size: 2mm
Thermal Fuse: Internal 115C
AS/NZS 61558.2.6 approval: Q99396

*Specifications are subject to change without notice.

Product Warranty

1 Year Return to Base
