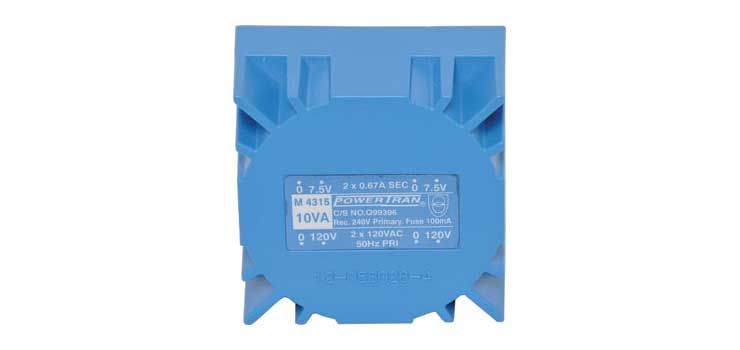

Powertran 10VA Potted Toroidal Transformer - 7.5+7.5V, Class A Insulation

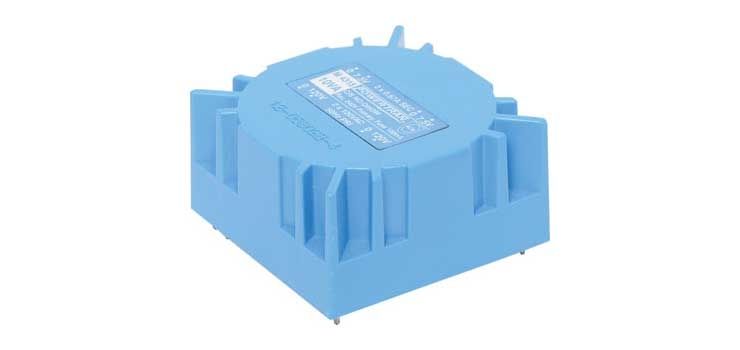

[More images available]

Product May Vary From Image

Part No:

108647

Brand:

Powertran Web Site

Manuf No:

M4315

Usually Ships:

No Longer Available More info

Ship Weight:

0.21 KG Details

Product Description

Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for high performance, low noise circuits.

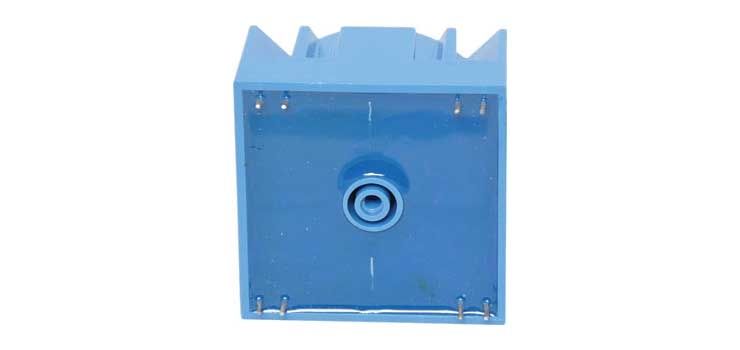

The transformer is potted in an epoxy compound within a plastic housing. Configured with 2 x 120V primaries and 2 identical secondaries which can be wired in either series or parallel. Being PCB mount reduces assembly time as the transformer simply solders to the PCB. For extra stability and mechanical reliability the transformer can be secured to the PCB with a self tapping screw.

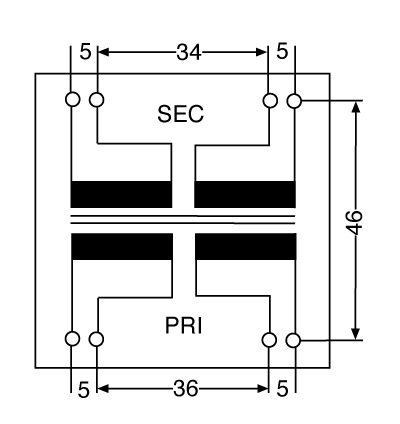

PCB Layout

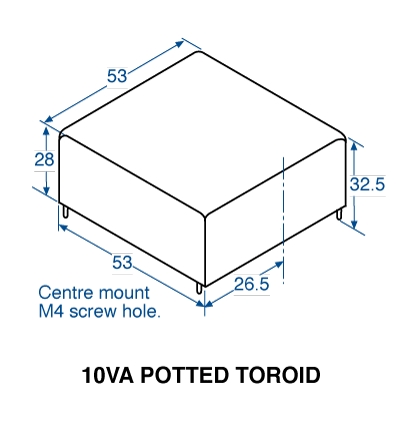

Dimensions

Sec. V: 7.5+7.5
Sec. Parallel: 1.3A
Sec. Series: 0.66A
Primary voltage: 2 x 120V AC
Total VA rating: 10VA
Insulation: Class A (105C)
Magnetising current: <20mA
Temperature rise: <65C
Recommended AC Fuse: 100mA
Regulation: 20%
Weight: 210g
PCB hole size: 2mm
AS/NZS 61558.2.6 approval: Q99396
Note: Must be used with a standard 100mA external AC fuse

*Specifications are subject to change without notice.
