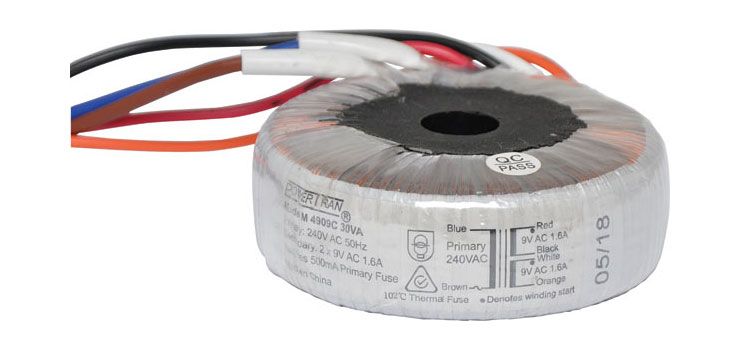

Powertran 240/9+9 30VA Toroidal Transformer

[Large image available]

Product May Vary From Image

Part No:

108629

Brand:

Powertran Web Site

Manuf No:

M4909C

Usually Ships:

No Longer Available More info

Ship Weight:

0.67 KG Details

Product Description

These low profile 30VA transformers will fit inside our 1 Unit 19" rack cases.

Toroidal transformers are becoming increasingly popular due to their improved magnetic properties. They can also be made to a lower profile than a standard solenoid core transformer. This allows the equipment to conform to a lower rack unit height i.e. 1RU, 2RU, 3RU.

The advantage of the toroidal (donut) shape is that, due to its symmetry, the amount of magnetic flux that escapes outside the core (leakage flux) is minimised. Therefore, the electromagnetic interference (EMI) that is radiated to nearby circuits or equipment is less. EMI is of increasing importance in modern low power, high frequency electronics.

Toroidal transformer are highly efficient and are replacing the laminated type as the accepted industry standard, because toroids offer advantages in size, weight, and lower radiated field. Included Mounting Hardware: 30VA Series - 1RU Height
Rubber Washer: 6.5 x 70 x 1.5mm - 1PCS
Screw: M6X35mm - 1PCS
Hex Nut: M6 - 1PCS
Washer: M6 - 1PCS
Lock Washer: M6 - 1PCS

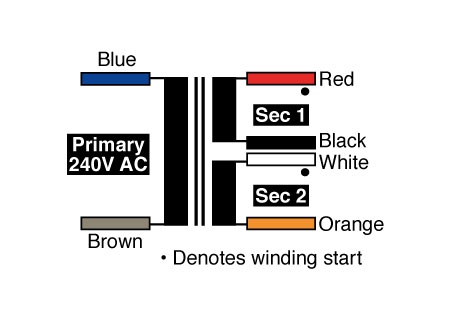

Wiring

Secondaries parallel
Current available where secondaries are connected in parallel.

Secondaries series
Current available where secondaries are connected in series.

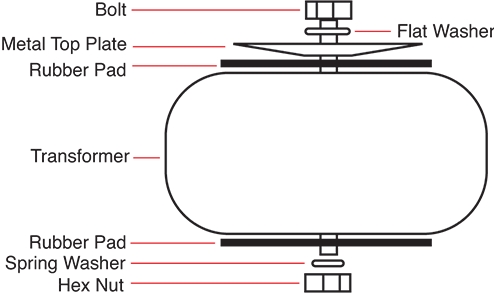

Mounting

Features

Low profile design is suitable for use inside our 1RU 19 rack enclosures.
30VA series models have potted epoxy centre core for easy mounting.
Lower electrically induced noise demanded by compact equipment.

Length: 210mm
Terminal: 10mm
Primary Lead No: 1-2
Colour: Brown, Blue
Rating: UL1672 AWG#18,105C, VW-1, 300V, Double insulation
Secondary Lead No: 3-4
Colour: Red, Black
Secondary Lead No: 5-6
Colour: WHI-ORG
Rating: UL1015 AWG#20, 105C, VW-1, 600V, Single insulation
Unloaded Voltage: 0-10.08V (V5% regulation)
Loading Voltage: 0-9.0V
Rated Current (A): 1.6A
Tolerance: 2%

*Specifications are subject to change without notice.

Product Warranty

1 Year Return to Base
