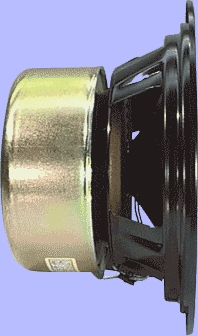

NoBrand 60W Polypropylene Hi-Fi Speaker Driver - 6.5" (165mm), 8 Ohm, Magnetically Shielded

[More images available]

Product May Vary From Image

Part No:

105833

Brand:

NoBrand

Manuf No:

C3087

Usually Ships:

No Longer Available More info

Ship Weight:

2 KG Details

Product Description

Specifications:

Max Free Air Power Input: 40W
Max Power Input (RE): 75W
Impedance: 8Ω
Frequency Resp: 45Hz-8kHz
Resonant Frequency: 45Hz
Sensitivity (1w @ 1m): 88dB
Voice Coil Diameter: 25.4mm
QMS: 5.74
QES: 0.66
QTS: 0.59
VAS: 28.3L
Nett Weight: 1.8kg
Magnet Weight: 504g
Overall Diameter: 195mm
Cutout Diameter: 150mm
Mounting Depth: 94mm

Suggested Vented Enclosure
(Tuned to 37Hz)
Volume: 54L
Port: 50mmø x 25mmL

Suggested Sealed Enclosure
Volume: 20

Product Warranty

1 Year Return to Base
