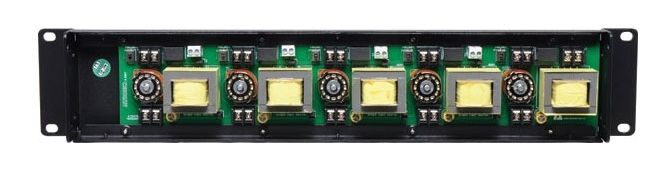

Redback Attenuator Volume Control 5 Zone Evac 40W / 100V Line

This Attenuator Volume Control 5 Zone Evac 40W / 100V Line can be configured as either five single inputs to five outputs or one input to five outputs. Each zone has a 40W load capacity, with a total panel capacity of 200W. This model has six settings plus off. The input and outputs are connected via heavy duty screw terminals on the rear panel. They are housed in a 2 unit rack panel and are supplied with an engraving strip to label the speaker zones. Suitable for 100V line commercial PA systems only.

Specifications
Power rating: 200W (40W per zone)
Relay override operation voltage: 24V DC
Dimensions: 484W x 50D x 88H mm
Weight: 2.3kg
*Specifications are subject to change without notice.

10 Years
