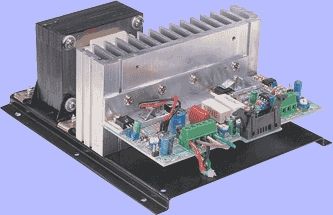

Redback 60W Line Power Amplifier Module - 3.8A, 100V Line Audio Output

[Large image available]

Product May Vary From Image

Part No:

104304

Brand:

Redback

Manuf No:

A1920A

Usually Ships:

No Longer Available More info

Ship Weight:

2.748 KG Details

Product Description

These modules are designed for use in emergency evacuation systems and are powered by an external 24V DC source. They accept a line level audio input and produce a 100V line output via a transformer. The modules feature short circuit, overload and thermal cutout protection, and are constructed on a steel chassis.

Features:

• Powered by 24V DC
• 100V line audio output
• Line level audio input
• Short circuit, overload and thermal cutout protection
• Bolt-in chassis construction
• Australian designed and assembled

Specifications:

Output Power: 60W RMS
Current Draw: 3.8A at full load (100mA quiescent)
Frequency Response: 43Hz - 12kHz
Distortion: <0.3%
SNR: -94dB
Sensitivity: 600mV RMS
Protection: 4A
Dimensions: 210W x 170D x 85H

* Specifications subject to change without notice.

Product Warranty

1 Year Return to Base
